R13-507 16mm Red Non Locking Reset Switch
This content will be shared across all product pages.

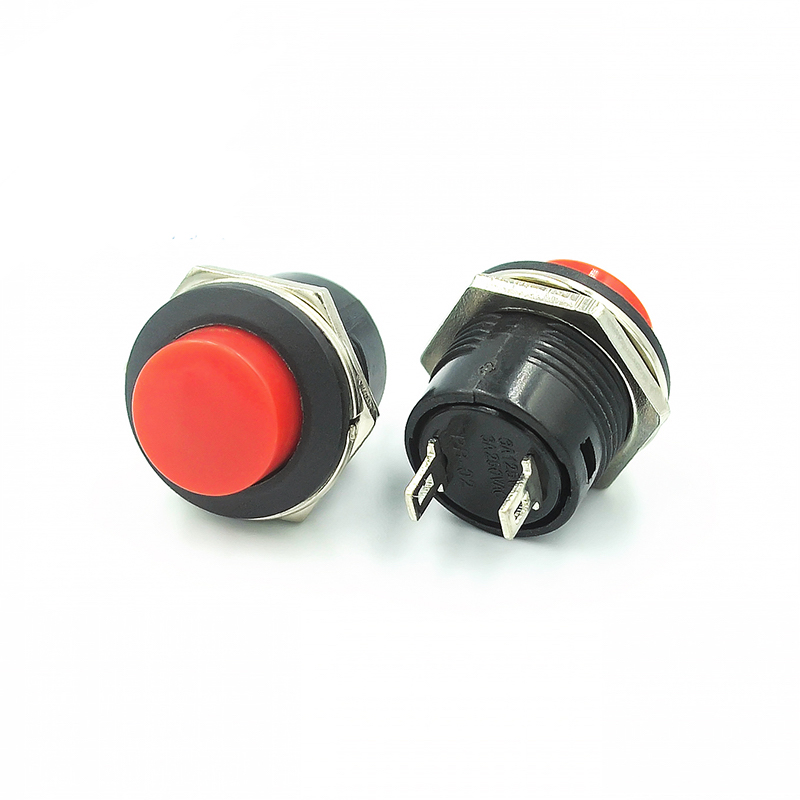

The R13-507 is a 16mm non-locking reset switch, featuring a red button. It is designed for applications that require a momentary contact switch to reset a circuit or device. The switch is robust and durable, making it suitable for a wide range of electronic and electrical applications.
Key Features:
- Button Color: Red
- Mounting Hole Size: 16mm diameter
- Operation Type: Non-locking (momentary action)
- Contact Type: Normally open (NO)
- Material: High-quality plastic and metal construction
- Durability: Designed for high reliability and long operational life
- Easy Installation: Threaded body for secure mounting
- Mounting Hole Size: 16mm
- Button Diameter: Approximately 10mm
- Switch Type: Momentary (non-locking)
- Contact Configuration: SPST (Single Pole Single Throw)
- Rated Voltage: Typically rated for low voltage applications (e.g., 12V DC)
- Rated Current: Varies by model, typically up to 2A
- Material: Plastic button with metal contacts
- Operating Temperature: Suitable for standard operating temperatures
- Reset Switch: Commonly used as a reset switch in various electronic devices.
- Control Panels: Ideal for use in control panels where momentary contact is required.
- DIY Electronics: Suitable for DIY electronics projects and hobbyist applications.
- Industrial Equipment: Can be used in industrial equipment for momentary contact applications.
- Automotive: Suitable for automotive applications requiring a reset or momentary action switch.
Technical Specifications:
- Logic Family: CMOS
- Number of Channels: 3
- Switch Configuration: Single-Pole Double-Throw (SPDT)
- Supply Voltage Range: 3V to 15V
- “ON” Resistance (R_ON): 125Ω typical at V_DD = 10V
- “OFF” Leakage Current (I_OFF): ±100pA typical at V_DD = 10V
- Control Input Voltage (V_IH): 0.7 V_DD min, 0.3 V_DD max
- Maximum Operating Frequency: 40 MHz at V_DD = 10V
Applications:
- Signal routing and switching
- Analog and digital multiplexing
- Audio and video signal processing
- Data acquisition systems
- Test equipment
