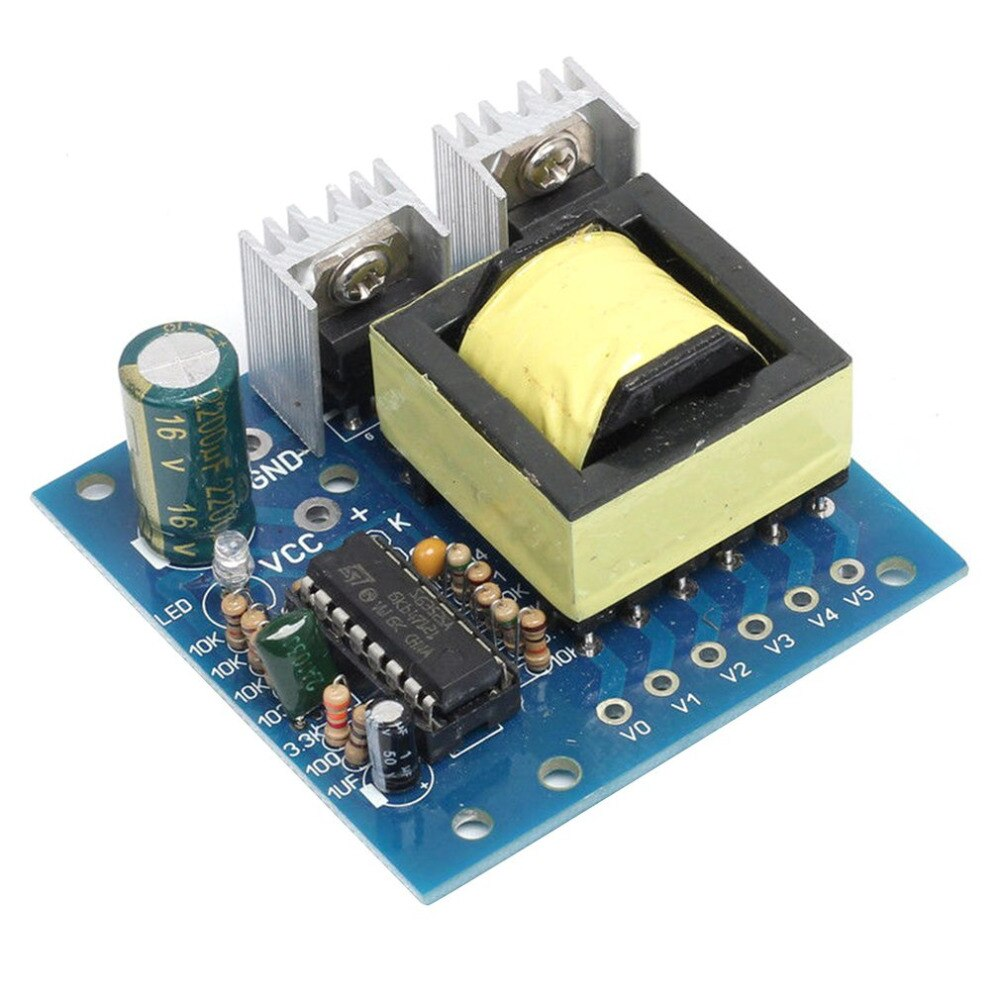

150W inverter board 12VDC to 220VAC
This content will be shared across all product pages.
The 150W inverter board is designed to convert a 12V DC input to a 220V AC output, making it suitable for powering AC appliances from a 12V DC power source such as a car battery or a solar power system. This inverter is compact, efficient, and ideal for applications where a stable AC power supply is required from a DC source.
Key Features:
- Input Voltage: 12V DC
- Output Voltage: 220V AC
- Power Rating: 150W continuous output power
- Frequency: 50Hz or 60Hz (depending on the model)
- Waveform: Modified sine wave or pure sine wave (depending on the model)
- Protection: Overload, short-circuit, over-temperature, and low battery voltage protection
- Efficiency: High conversion efficiency for minimal power loss
- Cooling: Equipped with heat sinks or cooling fans to prevent overheating
- Compact Design: Lightweight and portable, suitable for various applications
- Input Voltage: 12V DC
- Output Voltage: 220V AC
- Output Power: 150W continuous
- Output Frequency: 50Hz or 60Hz
- Waveform: Modified sine wave or pure sine wave
- Efficiency: Typically around 85-90%
- Protection Features:
- Overload protection
- Short-circuit protection
- Over-temperature protection
- Low battery voltage protection
- Dimensions: Varies by manufacturer, typically designed to be compact for ease of use
- Weight: Lightweight design for portability
- Automotive: Powering AC devices from a car or truck battery.
- Camping and Outdoor Activities: Providing AC power for small appliances during outdoor adventures.
- Solar Power Systems: Converting DC power from solar panels to AC power for household use.
- Emergency Power Supply: Offering backup power during power outages for essential devices.
- DIY Projects: Integrating into custom projects requiring DC to AC power conversion.
Technical Specifications:
- Logic Family: CMOS
- Number of Channels: 3
- Switch Configuration: Single-Pole Double-Throw (SPDT)
- Supply Voltage Range: 3V to 15V
- “ON” Resistance (R_ON): 125Ω typical at V_DD = 10V
- “OFF” Leakage Current (I_OFF): ±100pA typical at V_DD = 10V
- Control Input Voltage (V_IH): 0.7 V_DD min, 0.3 V_DD max
- Maximum Operating Frequency: 40 MHz at V_DD = 10V
Applications:
- Signal routing and switching
- Analog and digital multiplexing
- Audio and video signal processing
- Data acquisition systems
- Test equipment
