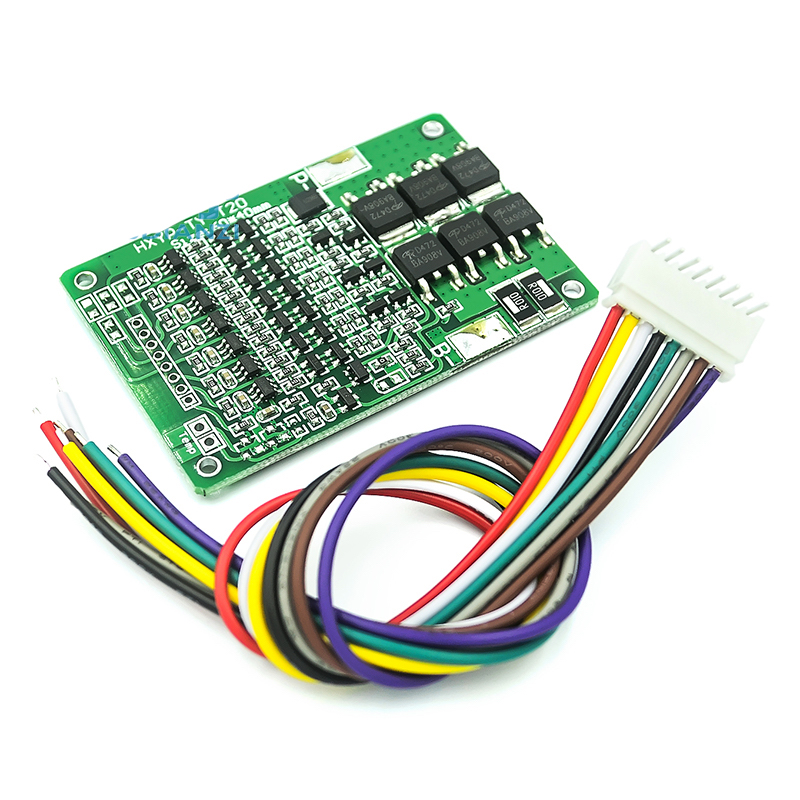

7S 15A 18650 lipo BMS with Protection Board
This content will be shared across all product pages.
The 7S 15A 18650 LiPo Battery Management System (BMS) with Protection Board is designed for managing and protecting lithium-ion battery packs consisting of seven series-connected 18650 cells. This BMS ensures safe operation by monitoring cell voltages, balancing charge among cells, and providing protection against overcharge, over-discharge, overcurrent, and short circuits.
Key Features:
- Cell Configuration: Supports 7 series (7S) 18650 LiPo cells.
- Current Rating: Handles continuous discharge currents up to 15A.
- Protection: Offers overcharge, over-discharge, overcurrent, and short-circuit protection.
- Cell Balancing: Balances cell voltages to maintain battery health and performance.
- Compact Design: Small and lightweight for easy integration into battery packs.
- Heat Dissipation: Designed to dissipate heat effectively, ensuring stable operation.
- LED Indicators: May include LED indicators for status monitoring (depending on the model).
- Battery Configuration: 7S (7 cells in series)
- Max Continuous Discharge Current: 15A
- Overcharge Protection Voltage: Typically set around 4.25V per cell
- Over-discharge Protection Voltage: Typically set around 2.5V per cell
- Overcurrent Protection: Activated at currents exceeding 15A
- Short-circuit Protection: Immediate shutdown in the event of a short circuit
- Balance Current: Typically around 50mA to 100mA per cell
- Dimensions: Varies by manufacturer, typically designed to fit within standard battery pack enclosures
- Electric Vehicles: Managing battery packs in e-bikes, e-scooters, and other electric vehicles.
- Portable Electronics: Ensuring safe operation of high-capacity battery packs in laptops, power banks, and other devices.
- Solar Energy Storage: Used in solar battery storage systems for balancing and protection.
- DIY Projects: Ideal for hobbyists building custom battery packs for various applications.
- RC Models: Protecting battery packs in remote-controlled aircraft, cars, and boats.
Technical Specifications:
- Logic Family: CMOS
- Number of Channels: 3
- Switch Configuration: Single-Pole Double-Throw (SPDT)
- Supply Voltage Range: 3V to 15V
- “ON” Resistance (R_ON): 125Ω typical at V_DD = 10V
- “OFF” Leakage Current (I_OFF): ±100pA typical at V_DD = 10V
- Control Input Voltage (V_IH): 0.7 V_DD min, 0.3 V_DD max
- Maximum Operating Frequency: 40 MHz at V_DD = 10V
Applications:
- Signal routing and switching
- Analog and digital multiplexing
- Audio and video signal processing
- Data acquisition systems
- Test equipment
