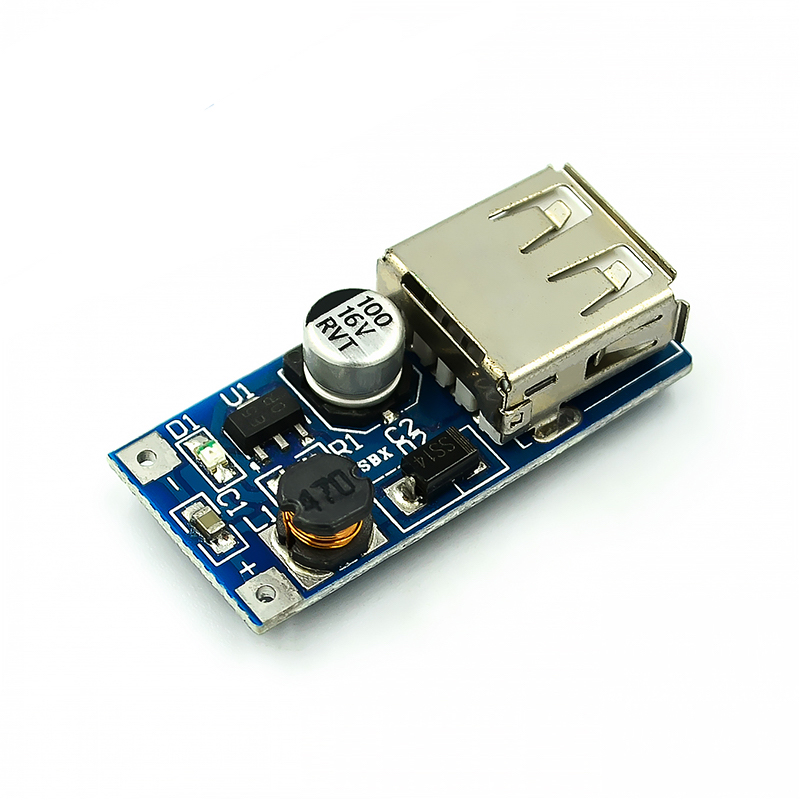

single USB 5v 600ma power bank module
This content will be shared across all product pages.
The single USB 5V 600mA power bank module is a compact and portable power supply solution designed to provide a stable 5V output for charging or powering devices that require USB power. It typically includes a built-in battery, charging circuitry, and USB output port, making it suitable for various portable electronics applications.
Key Features:
- Output Voltage: Provides a stable 5V output.
- Current Capacity: Supports up to 600mA of current output.
- USB Port: Single USB Type-A output port for connecting devices.
- Battery: Includes an integrated rechargeable battery for portable use.
- Charging Circuit: Built-in charging circuitry for recharging the internal battery.
- Compact Size: Small and lightweight for easy portability.
- Indicator Lights: LED indicators for power status and charging status.
- Protection: Overcharge, over-discharge, and short-circuit protection for safe operation.
- Input: Typically charged via micro-USB or USB-C input port.
- Output Voltage: 5V DC
- Output Current: Up to 600mA
- Battery Capacity: Varies by model, typically ranges from 1000mAh to 5000mAh.
- Charging Input: Micro-USB or USB-C input for recharging the module.
- Dimensions: Compact size, typically designed for easy integration into projects.
- Portable Devices: Powering or charging smartphones, tablets, and other USB-powered devices.
- DIY Projects: Integrating into DIY electronics projects requiring portable power.
- Emergency Power: Providing backup power for critical electronics during power outages.
- Outdoor Activities: Powering USB devices while camping, hiking, or traveling.
- Educational Use: Teaching electronics and power supply principles in educational settings.
Technical Specifications:
- Logic Family: CMOS
- Number of Channels: 3
- Switch Configuration: Single-Pole Double-Throw (SPDT)
- Supply Voltage Range: 3V to 15V
- “ON” Resistance (R_ON): 125Ω typical at V_DD = 10V
- “OFF” Leakage Current (I_OFF): ±100pA typical at V_DD = 10V
- Control Input Voltage (V_IH): 0.7 V_DD min, 0.3 V_DD max
- Maximum Operating Frequency: 40 MHz at V_DD = 10V
Applications:
- Signal routing and switching
- Analog and digital multiplexing
- Audio and video signal processing
- Data acquisition systems
- Test equipment
