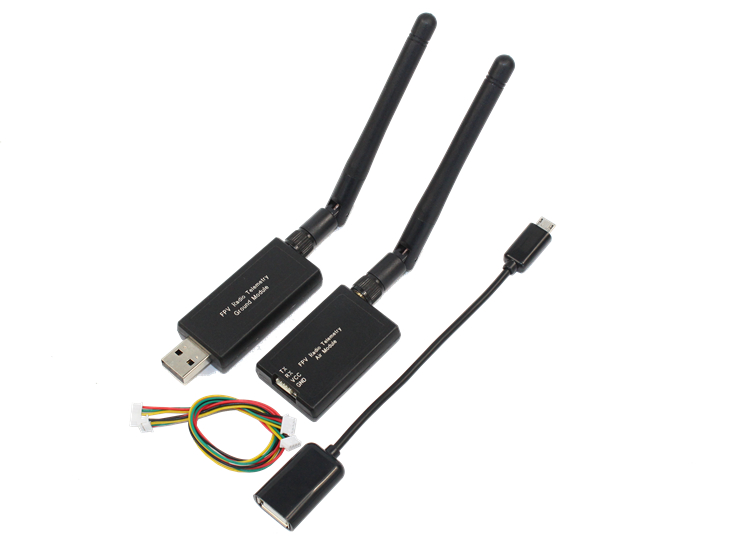

Telemetry 433MHz 500mW
This content will be shared across all product pages.
The Telemetry 433MHz 500mW module is designed for reliable wireless communication over long distances. It operates on the 433MHz frequency band and delivers a transmission power of 500mW, ensuring robust and stable data transfer. This module is commonly used in remote monitoring, telemetry, and control applications where reliable data communication is essential.
Key Features:
- Frequency: 433MHz
- Transmission Power: 500mW (27dBm)
- Modulation: FSK
- Data Rate: Adjustable, typically up to 10kbps
- Operating Voltage: 3.3V to 5V DC
- Interface: UART/TTL for easy integration with microcontrollers and other devices
- Antenna: External antenna for improved range and reliability
- Operating Range: Up to several kilometers in open areas (depending on antenna and environmental conditions)
- Low Power Consumption: Suitable for battery-powered applications
- Communication Protocol: Transparent transmission
- Error Checking: CRC check for reliable data transmission
- Dimensions: Compact size for easy integration into existing systems
- Operating Temperature: -40°C to 85°C
- Power Supply: Typically powered by 5V DC, with low current consumption
- Remote Monitoring: Ideal for remote data acquisition and monitoring applications.
- Telemetry Systems: Used in telemetry applications for collecting and transmitting data over long distances.
- Wireless Control: Enables wireless control and communication in industrial and IoT (Internet of Things) applications.
- Environmental Monitoring: Suitable for monitoring environmental parameters in remote locations.
Technical Specifications:
- Logic Family: CMOS
- Number of Channels: 3
- Switch Configuration: Single-Pole Double-Throw (SPDT)
- Supply Voltage Range: 3V to 15V
- “ON” Resistance (R_ON): 125Ω typical at V_DD = 10V
- “OFF” Leakage Current (I_OFF): ±100pA typical at V_DD = 10V
- Control Input Voltage (V_IH): 0.7 V_DD min, 0.3 V_DD max
- Maximum Operating Frequency: 40 MHz at V_DD = 10V
Applications:
- Signal routing and switching
- Analog and digital multiplexing
- Audio and video signal processing
- Data acquisition systems
- Test equipment
