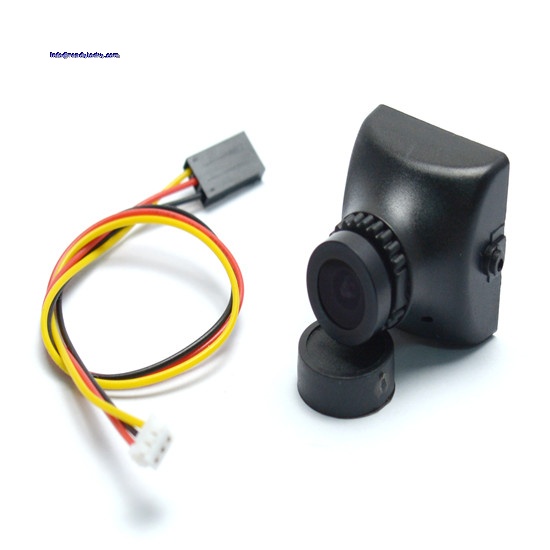

HD Color 700TVL camera
This content will be shared across all product pages.
The HD Color 700TVL Camera is a high-definition surveillance camera designed for capturing detailed video footage in various lighting conditions. It offers superior image clarity and color accuracy, making it suitable for both indoor and outdoor use. This camera is equipped with advanced imaging technology to deliver clear and crisp video recordings.
Key Features:
- Video Resolution: 700TVL (TV Lines)
- Image Sensor: CMOS or CCD (depending on model)
- Lens Type: Varifocal or Fixed lens options
- Infrared Cut Filter: Provides accurate color reproduction during daytime
- Low Light Performance: Enhanced sensitivity for better performance in low-light conditions
- Weatherproof Rating: Suitable for outdoor installations (IP66 or similar)
- Mounting Options: Wall mount or ceiling mount
- Power Supply: DC 12V or AC 24V (depending on model)
- Video Format: Analog
- Horizontal Resolution: 700 TV Lines
- Signal System: NTSC or PAL
- Minimum Illumination: 0.01 Lux (Color), 0 Lux with IR On (Night vision)
- Operating Temperature: -10°C to 50°C
- Dimensions: Varies based on model
- Security: Ideal for surveillance in homes, offices, retail stores, and public spaces.
- Monitoring: Suitable for monitoring areas requiring detailed video footage.
- Outdoor Use: Weatherproof design makes it suitable for outdoor surveillance.
- Day/Night Surveillance: Offers reliable performance in both daytime and nighttime conditions.
Technical Specifications:
- Logic Family: CMOS
- Number of Channels: 3
- Switch Configuration: Single-Pole Double-Throw (SPDT)
- Supply Voltage Range: 3V to 15V
- “ON” Resistance (R_ON): 125Ω typical at V_DD = 10V
- “OFF” Leakage Current (I_OFF): ±100pA typical at V_DD = 10V
- Control Input Voltage (V_IH): 0.7 V_DD min, 0.3 V_DD max
- Maximum Operating Frequency: 40 MHz at V_DD = 10V
Applications:
- Signal routing and switching
- Analog and digital multiplexing
- Audio and video signal processing
- Data acquisition systems
- Test equipment
