20cm XH-8P 8pin JST with socket
This content will be shared across all product pages.

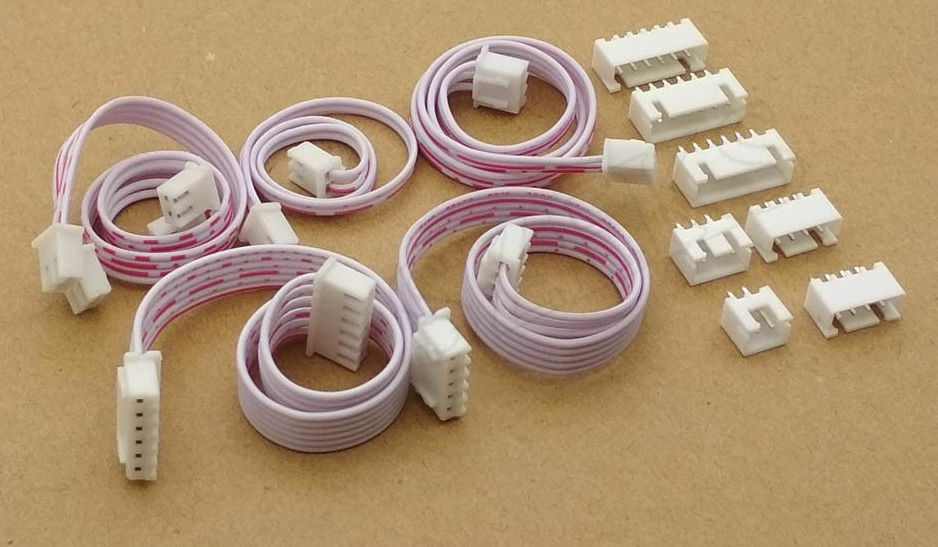

The 20cm XH-8P 8pin JST with Socket is a reliable and efficient connector solution used in various electronic projects and devices. This connector features an 8-pin JST XH-style plug and socket with a 20cm wire length, providing a secure and easy-to-use connection for electronic components, sensors, and modules.
Key Features:
- 8-Pin Connector: Provides a secure 8-pin connection suitable for various electronic applications.
- Wire Length: 20cm (approximately 8 inches) for flexible connections.
- High-Quality Materials: Made with durable materials for reliable and long-lasting performance.
- Easy to Use: Simple plug-and-play design for quick and secure connections.
- Versatile Applications: Suitable for a wide range of electronic projects, including prototyping and DIY projects.
- Reliable Connection: Ensures stable electrical connections for sensitive components.
- Connector Type: JST XH-8P 8-pin plug and socket
- Wire Length: 20cm (approximately 8 inches)
- Wire Gauge: Typically 26 AWG or 28 AWG
- Voltage Rating: Up to 250V AC/DC
- Current Rating: Up to 3A
- Insulation Material: PVC or equivalent
- Color: Typically white connectors with multi-colored wires
- Temperature Range: -25°C to 85°C
- Pin Spacing: 2.5mm
- Electronic Projects: Ideal for connecting sensors, modules, and small components in electronic projects.
- Prototyping: Suitable for breadboarding and prototyping circuits.
- DIY Projects: Perfect for hobbyists and makers creating custom electronics.
- Robotics: Used in robotics for connecting various parts and sensors.
- Home Automation: Useful in home automation projects for connecting devices and modules.
Technical Specifications:
- Logic Family: CMOS
- Number of Channels: 3
- Switch Configuration: Single-Pole Double-Throw (SPDT)
- Supply Voltage Range: 3V to 15V
- “ON” Resistance (R_ON): 125Ω typical at V_DD = 10V
- “OFF” Leakage Current (I_OFF): ±100pA typical at V_DD = 10V
- Control Input Voltage (V_IH): 0.7 V_DD min, 0.3 V_DD max
- Maximum Operating Frequency: 40 MHz at V_DD = 10V
Applications:
- Signal routing and switching
- Analog and digital multiplexing
- Audio and video signal processing
- Data acquisition systems
- Test equipment
