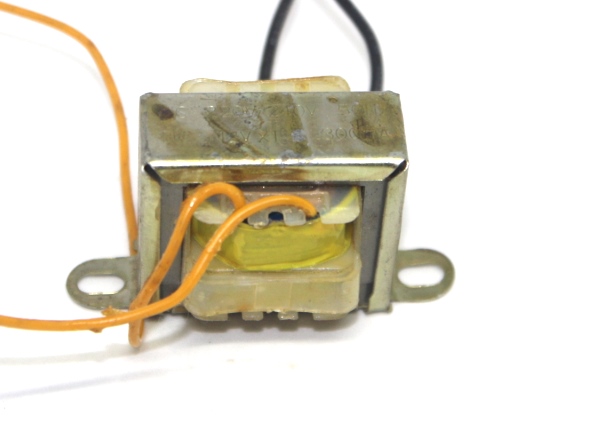

small Transformer 6v 300ma
This content will be shared across all product pages.
The Small Transformer 6V 300mA is a compact and efficient transformer designed to convert standard AC mains voltage into a single 6V AC output. With a current rating of 300mA, this transformer is ideal for low-power applications such as small electronic circuits, battery chargers, and hobby projects. Its small size allows for easy integration into various setups and devices.
Key Features:
- Single Voltage Output: Provides a stable 6V AC output for various applications.
- Current Rating: Capable of delivering up to 300mA of current for low-power applications.
- High Efficiency: Designed for efficient power conversion with minimal losses.
- Compact Design: Small and lightweight, making it easy to integrate into various setups.
- Thermal Protection: Includes thermal protection features to prevent overheating and ensure safety.
- Easy Mounting: Comes with mounting brackets for secure installation in various setups.
- Low Noise: Designed to minimize electrical noise, making it suitable for sensitive electronic applications.
- Primary Voltage: 220V AC (or 110V AC, depending on the model)
- Secondary Voltage: Single 6V AC output
- Current Rating: 300mA
- Frequency: 50/60Hz
- Efficiency: High efficiency with minimal power losses
- Insulation: Class B or higher for safety and reliability
- Dimensions: Compact size for easy integration
- Weight: Lightweight for convenient handling and installation
- Mounting: Includes brackets for secure installation
- Small Electronic Projects: Suitable for various low-power electronic circuits requiring a 6V AC power supply.
- Battery Chargers: Ideal for small battery charging applications.
- Hobby Projects: Perfect for DIY and hobbyist electronics projects.
- Home Appliances: Powers small appliances and devices requiring 6V AC.
- Toys and Gadgets: Provides power for small toys and gadgets.
Technical Specifications:
- Logic Family: CMOS
- Number of Channels: 3
- Switch Configuration: Single-Pole Double-Throw (SPDT)
- Supply Voltage Range: 3V to 15V
- “ON” Resistance (R_ON): 125Ω typical at V_DD = 10V
- “OFF” Leakage Current (I_OFF): ±100pA typical at V_DD = 10V
- Control Input Voltage (V_IH): 0.7 V_DD min, 0.3 V_DD max
- Maximum Operating Frequency: 40 MHz at V_DD = 10V
Applications:
- Signal routing and switching
- Analog and digital multiplexing
- Audio and video signal processing
- Data acquisition systems
- Test equipment
