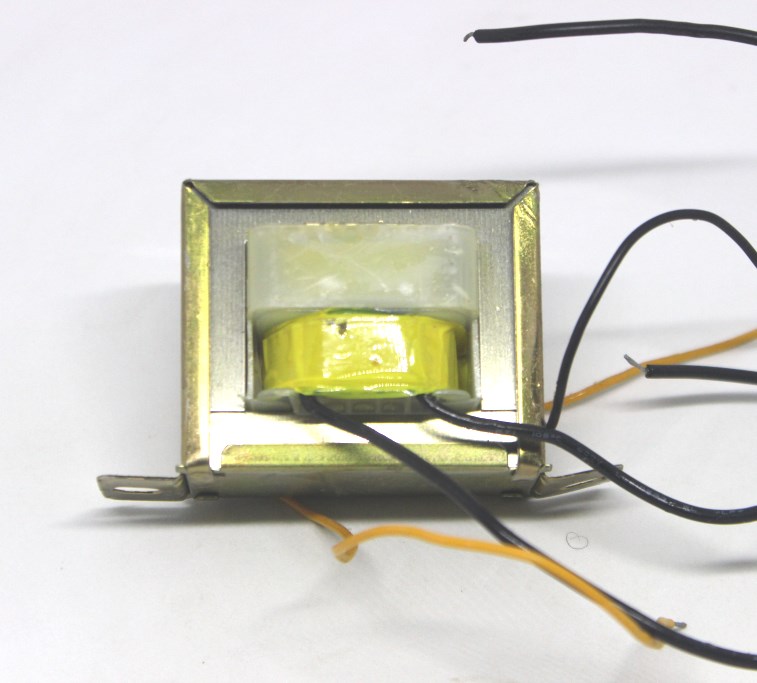

Big Transformer 15V-0-15V 1.5A
This content will be shared across all product pages.
The Big Transformer 15V-0-15V 1.5A is a robust power transformer designed to convert standard AC mains voltage into dual 15V AC outputs with a center tap. This transformer is ideal for applications requiring a symmetrical power supply, such as audio amplifiers, power supplies, and various electronic circuits. With a current rating of 1.5A, it provides sufficient power for medium-power applications.
Key Features:
- Dual Voltage Output: Provides 15V-0-15V AC outputs with a center tap for symmetrical power supply applications.
- Current Rating: Capable of delivering up to 1.5A of current for medium-power applications.
- High Efficiency: Designed for efficient power conversion with minimal losses.
- Robust Construction: Built with high-quality materials for durability and long-lasting performance.
- Thermal Protection: Includes thermal protection features to prevent overheating and ensure safety.
- Easy Mounting: Comes with mounting brackets for secure installation in various setups.
- Low Noise: Designed to minimize electrical noise, making it suitable for sensitive electronic applications.
- Primary Voltage: 220V AC (or 110V AC, depending on the model)
- Secondary Voltage: Dual 15V AC outputs with a center tap (15V-0-15V)
- Current Rating: 1.5A
- Frequency: 50/60Hz
- Efficiency: High efficiency with minimal power losses
- Insulation: Class B or higher for safety and reliability
- Dimensions: Depends on the specific model and manufacturer
- Weight: Typically ranges from 1 to 2 kg
- Mounting: Includes brackets for secure installation
- Audio Amplifiers: Provides a symmetrical power supply for audio amplifier circuits.
- Power Supplies: Ideal for creating regulated power supplies with dual voltage outputs.
- Electronic Projects: Suitable for various electronic circuits requiring dual 15V AC power.
- Industrial Equipment: Can be used in industrial control systems and equipment.
- Laboratory Use: Useful for experiments and testing in educational and research laboratories.
Technical Specifications:
- Logic Family: CMOS
- Number of Channels: 3
- Switch Configuration: Single-Pole Double-Throw (SPDT)
- Supply Voltage Range: 3V to 15V
- “ON” Resistance (R_ON): 125Ω typical at V_DD = 10V
- “OFF” Leakage Current (I_OFF): ±100pA typical at V_DD = 10V
- Control Input Voltage (V_IH): 0.7 V_DD min, 0.3 V_DD max
- Maximum Operating Frequency: 40 MHz at V_DD = 10V
Applications:
- Signal routing and switching
- Analog and digital multiplexing
- Audio and video signal processing
- Data acquisition systems
- Test equipment
