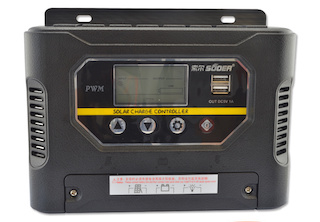

Suoer ST-W1250 12V 50A PWM Solar Charge Controller
This content will be shared across all product pages.
The Suoer ST-W1250 is a robust PWM (Pulse Width Modulation) solar charge controller designed to regulate and optimize the charging of 12V battery systems using solar panels. It efficiently manages the charging process by controlling the voltage and current from solar panels to batteries, ensuring maximum power extraction and prolonged battery life. This controller is suitable for various off-grid solar power systems, providing reliable performance and protection against overcharging, over-discharging, and other electrical faults.
Key Features:
- Charge Control: PWM charging algorithm for efficient and stable charging.
- Rated Charging Current: 50A
- Rated Voltage: 12V (automatic voltage detection)
- Maximum PV Input Voltage: 50V
- LCD Display: Shows real-time system information such as battery voltage, charging current, and status indicators.
- Multiple Protection Features: Overcharge protection, over-discharge protection, short-circuit protection, reverse polarity protection, and overheat protection.
- Temperature Compensation: Automatically adjusts charging parameters based on ambient temperature to improve battery charging efficiency.
- Load Output Control: Includes load output terminals for directly powering DC loads or lighting systems.
- Easy Installation: User-friendly design with plug-and-play terminals for solar panel, battery, and load connections.
- Compact Design: Compact and durable housing suitable for indoor or outdoor installations.
- Battery Type: Suitable for lead-acid batteries (Flooded, AGM, Gel)
- Max. Solar Panel Input Power: Up to 600W (for 12V battery systems)
- Self-consumption: ≤10mA
- Operating Temperature Range: -20°C to +55°C
- Humidity Range: ≤95%, non-condensing
- Dimensions: Compact size for easy integration into solar power systems
- Weight: Lightweight design for easy handling and installation
- Certifications: CE, RoHS compliant
- Off-Grid Solar Systems: Ideal for charging and maintaining batteries in remote locations without access to the electrical grid.
- Cabin and RV Solar Systems: Provides reliable charging for batteries in recreational vehicles and cabins.
- Solar Lighting Systems: Suitable for powering outdoor lighting and security systems.
- Small-scale Solar Projects: Used in DIY solar projects and educational demonstrations.
- Environmental Monitoring: Powers equipment for environmental monitoring stations in remote areas.
Technical Specifications:
- Logic Family: CMOS
- Number of Channels: 3
- Switch Configuration: Single-Pole Double-Throw (SPDT)
- Supply Voltage Range: 3V to 15V
- “ON” Resistance (R_ON): 125Ω typical at V_DD = 10V
- “OFF” Leakage Current (I_OFF): ±100pA typical at V_DD = 10V
- Control Input Voltage (V_IH): 0.7 V_DD min, 0.3 V_DD max
- Maximum Operating Frequency: 40 MHz at V_DD = 10V
Applications:
- Signal routing and switching
- Analog and digital multiplexing
- Audio and video signal processing
- Data acquisition systems
- Test equipment
