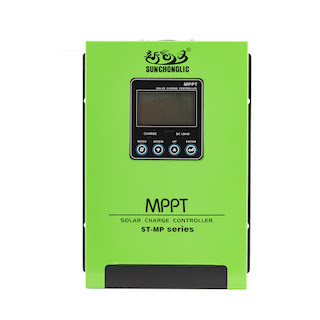

60A MPPT Solar Charge Controller FT-MP-60A
This content will be shared across all product pages.
The FT-MP-60A is a high-performance Maximum Power Point Tracking (MPPT) solar charge controller designed to optimize the efficiency of solar power systems. It ensures maximum power extraction from solar panels by dynamically adjusting the electrical operating point. This controller is suitable for larger solar power systems and is equipped with advanced features to enhance battery charging and system protection.
Key Features:
- Technology: MPPT (Maximum Power Point Tracking)
- Rated Current: 60A
- Rated Voltage: 12V/24V/48V auto recognition
- Maximum PV Input Voltage: 150V DC
- Display: LCD for real-time monitoring and parameter setting
- Protection Features: Overcharge protection, over-discharge protection, overload protection, short-circuit protection, and reverse polarity protection
- Temperature Compensation: Adjusts charging parameters based on ambient temperature to optimize battery performance
- Communication Port: RS485 for PC monitoring and external display connectivity
- Max. PV Input Power:
- 12V system: 800W
- 24V system: 1600W
- 48V system: 3200W
- Charging Efficiency: ≥98%
- Self-consumption: ≤2W
- Operating Temperature Range: -20°C to +50°C
- Humidity Range: 0% to 100% non-condensing
- Dimensions: 303 mm x 182 mm x 113 mm
- Weight: 4.5 kg
- Terminals: Suitable for wires up to 35 mm²
- Solar Home Systems: Ideal for managing solar power in large residential setups.
- Commercial Solar Projects: Suitable for larger solar installations in businesses and industries.
- Off-Grid Solar Systems: Ensures efficient battery charging and power management in off-grid solar power systems.
- Renewable Energy Projects: Essential for optimizing the performance of solar power systems in various renewable energy applications.
- Hybrid Systems: Can be integrated into hybrid solar power systems with wind or hydro power components.
Technical Specifications:
- Logic Family: CMOS
- Number of Channels: 3
- Switch Configuration: Single-Pole Double-Throw (SPDT)
- Supply Voltage Range: 3V to 15V
- “ON” Resistance (R_ON): 125Ω typical at V_DD = 10V
- “OFF” Leakage Current (I_OFF): ±100pA typical at V_DD = 10V
- Control Input Voltage (V_IH): 0.7 V_DD min, 0.3 V_DD max
- Maximum Operating Frequency: 40 MHz at V_DD = 10V
Applications:
- Signal routing and switching
- Analog and digital multiplexing
- Audio and video signal processing
- Data acquisition systems
- Test equipment
