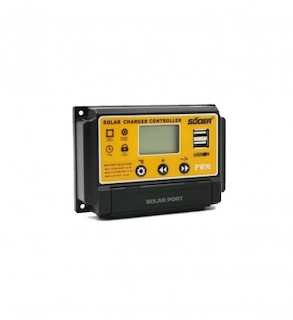

Suoer ST-S1230 PWM Solar Charge Controller

The Suoer ST-S1230 is a PWM (Pulse Width Modulation) solar charge controller designed for 12V and 24V battery systems. It offers reliable battery management by efficiently controlling the charging and discharging processes. With a current rating of 30A, this controller is suitable for medium-sized solar power systems. It features an intuitive LCD display for real-time monitoring and various protections to ensure the longevity and safety of the connected batteries. Key Features:

• PWM Technology: Ensures efficient charging and extended battery life.
• Dual Voltage System: Supports both 12V and 24V battery systems.
• 30A Current Rating: Suitable for medium-sized solar installations.
• LCD Display: Provides real-time information on system status and parameters.
• Battery Compatibility: Works with sealed, gel, and flooded batteries.
• Multiple Protections: Includes overcharge, over-discharge, overload, and short-circuit protections.
• Temperature Compensation: Adjusts charging parameters based on ambient temperature for optimal performance.
• Intelligent Load Control: Allows for automatic control of connected loads.

Technical Specifications:

• System Voltage: 12V/24V Auto
• Rated Charge/Discharge Current: 30A
• Max Solar Input Voltage: 50V
• Float Charge Voltage: 13.7V (12V system) / 27.4V (24V system) (adjustable)
• Discharge Cut-Off Voltage: 10.7V (12V system) / 21.4V (24V system) (adjustable)
• Discharge Reconnect Voltage: 12.6V (12V system) / 25.2V (24V system) (adjustable)
• Self-Consumption: ≤10mA
• Temperature Compensation: -3mV/°C/cell
• Operating Temperature Range: -35°C to +60°C
• Storage Temperature Range: -35°C to +80°C
• Dimensions: 188mm x 90mm x 48mm
• Weight: 350g

Applications:

• Medium-Sized Solar Power Systems: Ideal for residential and small commercial solar installations.
• Off-Grid Solar Systems: Provides efficient battery management for off-grid applications.
• Remote Locations: Suitable for use in remote areas without access to grid power.
• RV and Marine Applications: Ensures reliable battery management for recreational vehicles and boats.

Safety Features:

• Overcharge Protection: Prevents battery overcharging, extending battery life.
• Over-Discharge Protection: Protects the battery from deep discharge, preserving battery health.
• Overload Protection: Automatically disconnects the load to prevent excessive current draw.
• Short-Circuit Protection: Prevents damage from electrical short circuits.
• Reverse Polarity Protection: Protects the controller and battery from damage due to incorrect wiring.

Datasheet: For detailed technical information, refer to the Suoer ST-S1230 PWM Solar Charge Controller Datasheet provided by the manufacturer.
