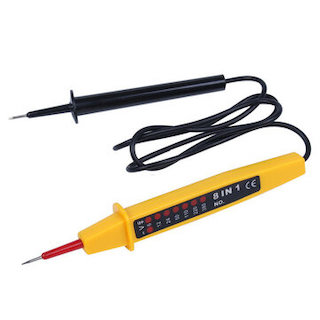

8 In 1 6-380V AC and DC Voltmeter test pen
This content will be shared across all product pages.
The 8 In 1 6-380V AC and DC Voltmeter Test Pen is a versatile, compact tool designed for measuring voltage and testing electrical circuits. It features a digital display for accurate readings and can measure both AC and DC voltages from 6V to 380V. This test pen is ideal for electricians, technicians, and DIY enthusiasts who need a reliable tool for various electrical testing tasks.
Key Features:
- Measurement Functions:
- AC Voltage: Measures AC voltage from 6V to 380V.
- DC Voltage: Measures DC voltage from 6V to 380V.
- Display: Digital LCD display for clear and precise readings.
- Multifunctional: Combines multiple testing functions in one pen, including voltage measurement, continuity test, and phase detection.
- Auto-Ranging: Automatically selects the appropriate measurement range for ease of use.
- LED Indicator: Bright LED indicator for visual confirmation of test results.
- Continuity Test: Audible signal for continuity testing.
- Non-Contact Voltage Detection: Allows for safe and easy voltage detection without direct contact with conductors.
- Durable Construction: Robust and ergonomic design for comfortable use and long-lasting performance.
- Voltage Measurement Range: 6V to 380V (AC/DC)
- Display Type: Digital LCD
- Power Supply: Button cell battery (included)
- Dimensions: 150mm x 25mm x 15mm
- Weight: 50g
- Safety Rating: CAT II 600V
- Electrical Testing: Ideal for measuring and detecting voltage in electrical circuits and devices.
- Maintenance: Useful for troubleshooting electrical systems in residential, commercial, and industrial settings.
- DIY Projects: Suitable for hobbyists working on various electrical and electronic projects.
- Insulated Housing: Provides protection against electric shock.
- Overload Protection: Safeguards the device against high voltage spikes.
Technical Specifications:
- Logic Family: CMOS
- Number of Channels: 3
- Switch Configuration: Single-Pole Double-Throw (SPDT)
- Supply Voltage Range: 3V to 15V
- “ON” Resistance (R_ON): 125Ω typical at V_DD = 10V
- “OFF” Leakage Current (I_OFF): ±100pA typical at V_DD = 10V
- Control Input Voltage (V_IH): 0.7 V_DD min, 0.3 V_DD max
- Maximum Operating Frequency: 40 MHz at V_DD = 10V
Applications:
- Signal routing and switching
- Analog and digital multiplexing
- Audio and video signal processing
- Data acquisition systems
- Test equipment
