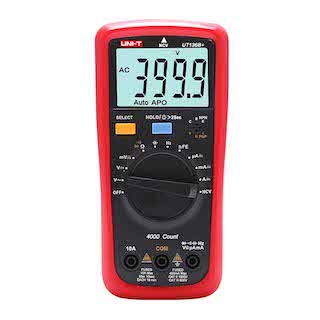

UNI-T UT136B+ AC DC Multimeter
This content will be shared across all product pages.
The UNI-T UT136B+ is a compact and reliable digital multimeter designed for a wide range of electrical measurements. It provides accurate readings for AC/DC voltage, AC/DC current, resistance, continuity, and diode testing. The UT136B+ features a clear LCD display, auto-ranging functionality, and essential safety features, making it a great choice for both professionals and DIY enthusiasts.
Key Features:
- Measurement Functions:
- AC/DC Voltage: Measures up to 600V.
- AC/DC Current: Measures up to 10A.
- Resistance: Tests resistance up to 40MΩ.
- Continuity: Audible continuity test for quick checks.
- Diode Test: Checks diode functionality.
- Display: 4000-count LCD with backlight for easy reading in various lighting conditions.
- Auto-ranging: Automatically selects the appropriate measurement range.
- Data Hold Function: Freezes the displayed value for easy reading.
- Max/Min Mode: Records maximum and minimum values for accurate measurements.
- Safety Ratings: Designed to meet safety standards with CAT III 600V ratings.
- Additional Features: Includes a low battery indicator, auto power-off function, and overload protection.
- Accessories: Comes with test leads and a user manual.
- Display: 4000-count LCD
- Sampling Rate: Approximately 3 times per second
- Power Supply: 2 x 1.5V AA batteries
- Operating Temperature: 0°C to 40°C (32°F to 104°F)
- Storage Temperature: -10°C to 50°C (14°F to 122°F)
- Dimensions: 150mm x 74mm x 48mm
- Weight: 220g (including batteries)
- Electrical Testing: Ideal for electricians, technicians, and hobbyists for measuring voltage, current, resistance, and more in circuits and appliances.
- Maintenance: Useful for troubleshooting electrical equipment and systems.
- Field Work: Portable design makes it suitable for on-site measurements and inspections.
- Overload Protection: Protects against accidental voltage spikes and current overloads.
- Safety Standards: Complies with international safety standards for electrical measurement tools.
Technical Specifications:
- Logic Family: CMOS
- Number of Channels: 3
- Switch Configuration: Single-Pole Double-Throw (SPDT)
- Supply Voltage Range: 3V to 15V
- “ON” Resistance (R_ON): 125Ω typical at V_DD = 10V
- “OFF” Leakage Current (I_OFF): ±100pA typical at V_DD = 10V
- Control Input Voltage (V_IH): 0.7 V_DD min, 0.3 V_DD max
- Maximum Operating Frequency: 40 MHz at V_DD = 10V
Applications:
- Signal routing and switching
- Analog and digital multiplexing
- Audio and video signal processing
- Data acquisition systems
- Test equipment
