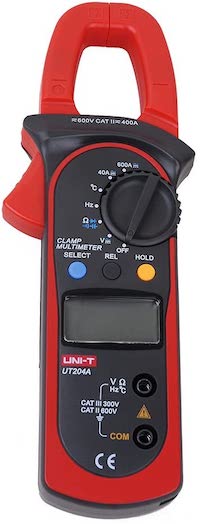

UNIT UT204A digital clamp multimeter

The UNIT UT204A Digital Clamp Multimeter is a versatile and reliable tool designed for electrical measurement tasks. It combines the features of a digital multimeter with the functionality of a clamp meter, allowing users to measure AC/DC voltage, AC current, resistance, continuity, frequency, and temperature. The clamp feature enables non-contact current measurements, making it convenient for use in various applications without interrupting the circuit. Key Features:

• Measurement Functions:
  • AC/DC Voltage: Measures up to 600V with high accuracy.
  • AC Current: Measures up to 600A using the clamp jaw.
  • Resistance: Tests resistance up to 40MΩ.
  • Continuity: Audible continuity test for quick checks.
  • Diode Test: Checks diode functionality.
  • Frequency: Measures frequency up to 10MHz.
  • Temperature: Measures temperature with included thermocouple probe.
• Clamp Jaw: Allows for non-invasive current measurements up to 600A.
• Display: Large backlit LCD screen for easy reading in various lighting conditions.
• Auto-ranging: Automatically selects the appropriate measurement range.
• Data Hold Function: Freezes the displayed value for easy reading.
• Relative Mode: Allows for relative measurements to compare against a reference value.
• Safety Ratings: Designed to meet safety standards with CAT III 600V and CAT II 1000V ratings.
• Additional Features: Includes a low battery indicator, auto power-off function, and overload protection.
• Accessories: Comes with test leads, a thermocouple probe, and a carrying case for portability and storage.

Technical Specifications:

• Display: 3½ digit LCD with maximum reading of 3999
• Sampling Rate: Approximately 3 times per second
• Jaw Opening: Accommodates conductors up to 28mm in diameter
• Power Supply: 1 x 9V battery (6F22)
• Operating Temperature: 0°C to 40°C (32°F to 104°F)
• Storage Temperature: -10°C to 50°C (14°F to 122°F)
• Dimensions: 220mm x 75.6mm x 40mm
• Weight: 280g (including battery)

Applications:

• Electrical Testing: Ideal for electricians, technicians, and hobbyists for measuring voltage, current, resistance, and more in circuits and appliances.
• Maintenance: Useful for troubleshooting electrical equipment and systems.
• Field Work: Portable design makes it suitable for on-site measurements and inspections.

Safety Features:

• Overload Protection: Protects against accidental voltage spikes and current overloads.
• Safety Standards: Complies with international safety standards for electrical measurement tools.

Datasheet: For detailed technical information, refer to the UNIT UT204A Datasheet provided by the manufacturer.
