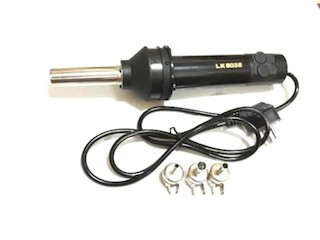

Portable hot air rework station
This content will be shared across all product pages.
A portable hot air rework station is a versatile tool used primarily for soldering and desoldering electronic components such as surface-mounted devices (SMDs). It combines a precise temperature-controlled hot air gun with a stable base unit for holding the components. This setup allows for efficient soldering and desoldering without damaging nearby components or circuit boards.
Key Features:
- Hot Air Gun:
- Temperature Range: Typically adjustable from 100°C to 480°C (212°F to 896°F)
- Air Flow: Adjustable air flow rate for precise control
- Nozzle Types: Interchangeable nozzles for various component sizes and applications
- Base Unit:
- Temperature Control: Digital temperature display and controls for accurate settings
- Stability: Stable base with anti-slip feet to ensure steady operation
- Safety: Built-in safety features such as overheating protection and ESD-safe design
- Power Supply: Typically operates on 110V or 220V AC power supply
- Accessories: Includes various nozzles, soldering iron stand, and additional tools for versatility
- Portability: Compact and lightweight design for easy transportation and storage
- Applications: Suitable for soldering and desoldering SMD components on circuit boards, PCB repair, and rework tasks.
- Power Consumption: Typically ranges from 300W to 700W
- Air Flow: Adjustable, typically ranges from 20 to 120 liters per minute (L/min)
- Dimensions: Compact size, varies by model
- Weight: Lightweight, typically under 2kg (4.4 lbs)
- Safety Certifications: Complies with CE, RoHS, and other safety standards
- Display: Digital display for temperature and airflow settings
- Electronics Repair: Ideal for repairing and modifying electronic devices, circuit boards, and components.
- Prototyping: Useful for prototyping new electronic designs and projects.
- Industrial Use: Suitable for small-scale production and assembly of electronic devices.
- DIY Projects: Popular among hobbyists and makers for soldering and desoldering components.
Technical Specifications:
- Logic Family: CMOS
- Number of Channels: 3
- Switch Configuration: Single-Pole Double-Throw (SPDT)
- Supply Voltage Range: 3V to 15V
- “ON” Resistance (R_ON): 125Ω typical at V_DD = 10V
- “OFF” Leakage Current (I_OFF): ±100pA typical at V_DD = 10V
- Control Input Voltage (V_IH): 0.7 V_DD min, 0.3 V_DD max
- Maximum Operating Frequency: 40 MHz at V_DD = 10V
Applications:
- Signal routing and switching
- Analog and digital multiplexing
- Audio and video signal processing
- Data acquisition systems
- Test equipment
