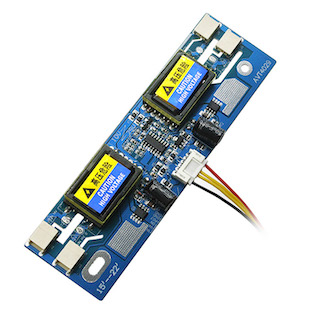

15 to 22 inch LCD TV led backlight inverter board AVT4029
This content will be shared across all product pages.
The AVT4029 is a high-quality LED backlight inverter board designed for use in 15 to 22 inch LCD TVs. It efficiently converts DC power to the necessary voltage and current required to drive the LED backlight strips, ensuring bright and consistent illumination. The AVT4029 is known for its reliability and compatibility with various LCD TV models.
Key Features:
- Compatibility: Suitable for 15 to 22 inch LCD TVs
- Input Voltage: Typically 12V DC (check specific model requirements)
- Output Voltage: Designed to drive standard LED backlight strips (varies by model)
- Power Efficiency: High efficiency for reduced power consumption
- Protection: Overcurrent, overvoltage, and short-circuit protection
- Mounting: Standard mounting holes for easy installation
- Connectors: Input and output connectors for seamless integration
- Dimensions: Varies by specific model, generally compact for easy fitting
- Input Voltage: 12V DC (±10%)
- Output Voltage: Typically 60-90V depending on the LED configuration
- Current Output: Depends on the LED backlight strip requirements, usually around 300-600mA
- Operating Temperature: -20°C to +60°C, suitable for various environmental conditions
- Storage Temperature: -40°C to +85°C
- Weight: Approximately 50-100g depending on the specific design
- LED Driver Type: Constant current driver for stable LED performance
- LCD TVs: Ensures bright and uniform backlighting for 15 to 22 inch LCD TVs.
- Monitors: Can be used in similar-sized LCD monitors for backlight replacement or repair.
- DIY Projects: Suitable for custom LCD display projects requiring reliable backlight solutions.
- Repair and Maintenance: Ideal for repairing and refurbishing LCD TVs with faulty backlight systems.
Technical Specifications:
- Logic Family: CMOS
- Number of Channels: 3
- Switch Configuration: Single-Pole Double-Throw (SPDT)
- Supply Voltage Range: 3V to 15V
- “ON” Resistance (R_ON): 125Ω typical at V_DD = 10V
- “OFF” Leakage Current (I_OFF): ±100pA typical at V_DD = 10V
- Control Input Voltage (V_IH): 0.7 V_DD min, 0.3 V_DD max
- Maximum Operating Frequency: 40 MHz at V_DD = 10V
Applications:
- Signal routing and switching
- Analog and digital multiplexing
- Audio and video signal processing
- Data acquisition systems
- Test equipment
