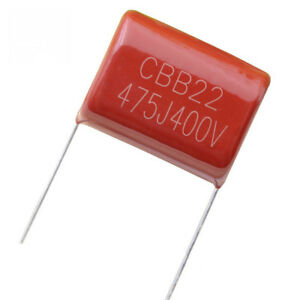

CBB 475J 400V 4.7UF Metallized Film Capacitor
This content will be shared across all product pages.
The CBB 475J 400V 4.7µF Metallized Film Capacitor is a high-quality capacitor designed for applications requiring high stability, low loss, and reliable performance in AC circuits. It is widely used in power supplies, audio equipment, and various electronic devices for filtering, coupling, and bypassing purposes.
Key Features:
- Capacitance: 4.7 microfarads (µF)
- Voltage Rating: 400 volts (V)
- Type: Metallized polypropylene film capacitor, known for its excellent electrical properties and durability.
- Applications: Ideal for use in AC circuits, power supplies, audio equipment, and other electronic applications requiring high stability and low loss.
- Size: Compact and suitable for different circuit board layouts.
- Lifetime: Rated for long operational life with superior self-healing properties.
- Capacitance: 4.7µF (microfarads)
- Voltage Rating: 400V (volts)
- Tolerance: ±5% (J), ensuring accurate capacitance value.
- ESR (Equivalent Series Resistance): Low ESR for high efficiency in filtering and coupling applications.
- Dimensions: Specific dimensions depend on the manufacturer; refer to datasheets for precise measurements.
- Temperature Range: Typically operates from -40°C to +85°C, ensuring reliable performance under various environmental conditions.
- Dielectric Material: Metallized polypropylene film, offering low dielectric losses and high insulation resistance.
- Lead Type: Radial leads for easy PCB mounting.
- Power Supplies: Used for filtering and decoupling in power supply circuits.
- Audio Equipment: Ideal for coupling and bypassing in audio circuits.
- AC Circuits: Suitable for applications requiring high stability and low losses.
- General Electronics: Utilized in various electronic devices for consistent performance.
Technical Specifications:
- Logic Family: CMOS
- Number of Channels: 3
- Switch Configuration: Single-Pole Double-Throw (SPDT)
- Supply Voltage Range: 3V to 15V
- “ON” Resistance (R_ON): 125Ω typical at V_DD = 10V
- “OFF” Leakage Current (I_OFF): ±100pA typical at V_DD = 10V
- Control Input Voltage (V_IH): 0.7 V_DD min, 0.3 V_DD max
- Maximum Operating Frequency: 40 MHz at V_DD = 10V
Applications:
- Signal routing and switching
- Analog and digital multiplexing
- Audio and video signal processing
- Data acquisition systems
- Test equipment
