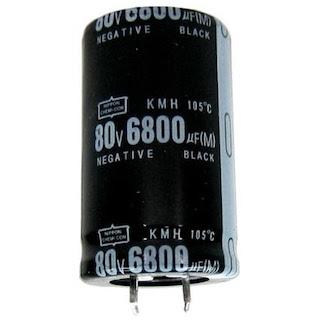

Electrolytic capacitor 80V 6800UF
This content will be shared across all product pages.
The 80V 6800µF Electrolytic Capacitor is designed for applications requiring high capacitance and voltage ratings. It is typically used in power supply circuits, audio equipment, and other electronic devices for filtering, energy storage, and smoothing purposes.
Key Features:
- Capacitance: 6800 microfarads (µF)
- Voltage Rating: 80 volts (V)
- Type: Electrolytic capacitor, polarized with marked positive and negative terminals.
- Applications: Suitable for filtering, decoupling, and providing reservoir capacitance in high-voltage electronic circuits.
- Size: Larger physical dimensions due to high capacitance and voltage rating.
- Lifetime: Rated for thousands of operational hours under normal conditions.
- Temperature Range: Typically operates from -40°C to +85°C, ensuring reliable performance in various environmental conditions.
- Capacitance: 6800µF (microfarads)
- Voltage Rating: 80V (volts)
- Tolerance: Generally ±20%, though specific tolerances may vary depending on the manufacturer.
- ESR (Equivalent Series Resistance): Low ESR for efficient filtering and energy storage applications.
- Dimensions: Radial or axial leaded configurations; specific dimensions depend on the manufacturer. Check the datasheet for precise measurements.
- Polarity: Electrolytic capacitors are polarized; ensure correct polarity during installation to avoid damage.
- Applications: Commonly used in power supplies, audio amplifiers, DC-DC converters, and other high-voltage electronic circuits requiring substantial capacitance.
Technical Specifications:
- Logic Family: CMOS
- Number of Channels: 3
- Switch Configuration: Single-Pole Double-Throw (SPDT)
- Supply Voltage Range: 3V to 15V
- “ON” Resistance (R_ON): 125Ω typical at V_DD = 10V
- “OFF” Leakage Current (I_OFF): ±100pA typical at V_DD = 10V
- Control Input Voltage (V_IH): 0.7 V_DD min, 0.3 V_DD max
- Maximum Operating Frequency: 40 MHz at V_DD = 10V
Applications:
- Signal routing and switching
- Analog and digital multiplexing
- Audio and video signal processing
- Data acquisition systems
- Test equipment
