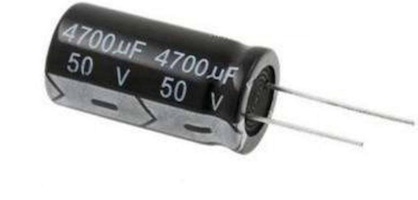

4700UF 50V Electrolytic Capacitors
This content will be shared across all product pages.
The 4700µF 50V Electrolytic Capacitor is a type of capacitor designed for applications requiring high capacitance and voltage ratings, typically used in power supply circuits, audio equipment, and other electronic devices.
Key Features:
- Capacitance: 4700 microfarads (µF)
- Voltage Rating: 50 volts (V)
- Type: Electrolytic capacitor, polarized with clearly marked positive and negative terminals.
- Applications: Used for filtering, decoupling, and energy storage in various electronic circuits.
- Size: Physical dimensions vary based on manufacturer specifications; typically larger compared to lower capacitance capacitors.
- Lifetime: Generally rated for thousands of hours of operational life under normal conditions.
- Temperature Range: Operating temperature typically ranges from -40°C to +85°C, ensuring stable performance across different environmental conditions.
- Capacitance: 4700µF (microfarads)
- Voltage Rating: 50V (volts)
- Tolerance: Typically ±20% tolerance, though tighter tolerances may be available depending on the manufacturer.
- ESR (Equivalent Series Resistance): Low ESR for efficient operation in power supply filtering applications.
- Dimensions: Physical dimensions (diameter and length) can vary; refer to datasheets for precise measurements.
- Polarity: Electrolytic capacitors are polarized; observe correct polarity during installation to prevent damage.
- Applications: Suitable for power supply units (PSUs), audio amplifiers, DC-DC converters, and other electronic circuits requiring large capacitance and voltage ratings.
Technical Specifications:
- Logic Family: CMOS
- Number of Channels: 3
- Switch Configuration: Single-Pole Double-Throw (SPDT)
- Supply Voltage Range: 3V to 15V
- “ON” Resistance (R_ON): 125Ω typical at V_DD = 10V
- “OFF” Leakage Current (I_OFF): ±100pA typical at V_DD = 10V
- Control Input Voltage (V_IH): 0.7 V_DD min, 0.3 V_DD max
- Maximum Operating Frequency: 40 MHz at V_DD = 10V
Applications:
- Signal routing and switching
- Analog and digital multiplexing
- Audio and video signal processing
- Data acquisition systems
- Test equipment
