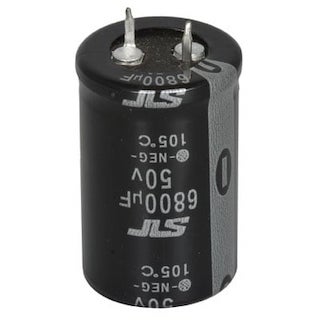

6800UF 50V Electrolytic Capacitors
This content will be shared across all product pages.
The 6800µF 50V Electrolytic Capacitor is an electronic component used primarily for filtering and energy storage in power supply circuits, audio equipment, and other electronic devices requiring large capacitance values.
Key Features:
- Capacitance: 6800 microfarads (µF)
- Voltage Rating: 50 volts (V)
- Type: Electrolytic capacitor, typically polarized with marked positive and negative terminals.
- Applications: Used for smoothing power supplies, filtering noise, and providing reservoir capacitance in circuits.
- Size: Physical dimensions vary based on manufacturer specifications.
- Lifetime: Generally rated for thousands of hours of operational life under normal conditions.
- Temperature Range: Operating temperature typically ranges from -40°C to +85°C, ensuring stable performance across different environmental conditions.
- Capacitance: 6800µF (microfarads)
- Voltage Rating: 50V (volts)
- Tolerance: Generally ±20% tolerance, though tighter tolerances may be available depending on the manufacturer.
- ESR (Equivalent Series Resistance): Low ESR for efficient operation in power supply filtering applications.
- Dimensions: Physical dimensions (diameter and length) can vary; consult datasheets for precise measurements.
- Polarity: Electrolytic capacitors are polarized; observe correct polarity during installation to prevent damage.
- Applications: Suitable for use in power supplies, audio amplifiers, DC-DC converters, and other electronic circuits requiring large capacitance and voltage ratings.
Technical Specifications:
- Logic Family: CMOS
- Number of Channels: 3
- Switch Configuration: Single-Pole Double-Throw (SPDT)
- Supply Voltage Range: 3V to 15V
- “ON” Resistance (R_ON): 125Ω typical at V_DD = 10V
- “OFF” Leakage Current (I_OFF): ±100pA typical at V_DD = 10V
- Control Input Voltage (V_IH): 0.7 V_DD min, 0.3 V_DD max
- Maximum Operating Frequency: 40 MHz at V_DD = 10V
Applications:
- Signal routing and switching
- Analog and digital multiplexing
- Audio and video signal processing
- Data acquisition systems
- Test equipment
