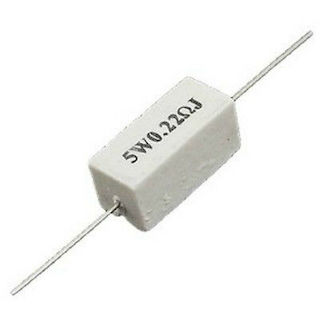

0.22 ohm 5W cement choke Resistor
This content will be shared across all product pages.
The 0.22 ohm 5W Cement Choke Resistor is a robust resistor designed to handle higher power dissipation and provide stable resistance in various electronic circuits. It is commonly used in power supplies, amplifiers, and other applications where low resistance and high wattage handling are required.
Key Features:
- Resistance Value: 0.22 ohms
- Power Rating: 5 watts
- Type: Cement resistor, which offers good thermal stability and reliability.
- Tolerance: Typically ±5% tolerance, ensuring accuracy in resistance value.
- Construction: Cement filled, providing excellent heat dissipation and mechanical stability.
- Mounting: Axial leaded for through-hole mounting on PCBs or as chassis-mounted components.
- Resistance: 0.22 ohms
- Power Rating: 5 watts
- Tolerance: ±5%
- Temperature Coefficient: Low temperature coefficient for stable performance over temperature variations.
- Operating Temperature Range: Wide operating temperature range suitable for various electronic environments.
- Dimensions: Compact size suitable for integration into electronic circuits.
- Applications: Used in power supplies, motor controls, audio amplifiers, and other high-power electronic circuits requiring low resistance and high power dissipation.
Technical Specifications:
- Logic Family: CMOS
- Number of Channels: 3
- Switch Configuration: Single-Pole Double-Throw (SPDT)
- Supply Voltage Range: 3V to 15V
- “ON” Resistance (R_ON): 125Ω typical at V_DD = 10V
- “OFF” Leakage Current (I_OFF): ±100pA typical at V_DD = 10V
- Control Input Voltage (V_IH): 0.7 V_DD min, 0.3 V_DD max
- Maximum Operating Frequency: 40 MHz at V_DD = 10V
Applications:
- Signal routing and switching
- Analog and digital multiplexing
- Audio and video signal processing
- Data acquisition systems
- Test equipment
