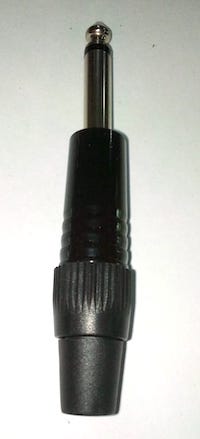

Black Jack Audio plug
This content will be shared across all product pages.
The Black Jack Audio Plug refers to a type of audio connector commonly used in various audio devices for connecting cables, headphones, microphones, and other audio equipment. It provides a reliable and standardized connection for transmitting audio signals.
Key Features:
- Connector Type: Typically 3.5mm (1/8") or 6.35mm (1/4") stereo or mono jack plug
- Color: Black, aiding in identification and integration with equipment
- Material: Metal (such as nickel-plated brass) for durability and reliable signal transmission
- Termination: Solder terminals or screw terminals for secure connection
- Usage: Designed for connecting audio cables, headphones, microphones, and audio equipment in consumer and professional settings
- Connector Type: 3.5mm (1/8") or 6.35mm (1/4") stereo or mono jack plug
- Material: Metal (nickel-plated brass) or similar conductive material for reliable electrical conductivity
- Insulation: Provides electrical insulation to prevent short circuits and ensure safety during use
- Applications: Ideal for audio systems, headphones, microphones, musical instruments, and other audio devices
Technical Specifications:
- Logic Family: CMOS
- Number of Channels: 3
- Switch Configuration: Single-Pole Double-Throw (SPDT)
- Supply Voltage Range: 3V to 15V
- “ON” Resistance (R_ON): 125Ω typical at V_DD = 10V
- “OFF” Leakage Current (I_OFF): ±100pA typical at V_DD = 10V
- Control Input Voltage (V_IH): 0.7 V_DD min, 0.3 V_DD max
- Maximum Operating Frequency: 40 MHz at V_DD = 10V
Applications:
- Signal routing and switching
- Analog and digital multiplexing
- Audio and video signal processing
- Data acquisition systems
- Test equipment
