Lidge jack Audio plug
This content will be shared across all product pages.

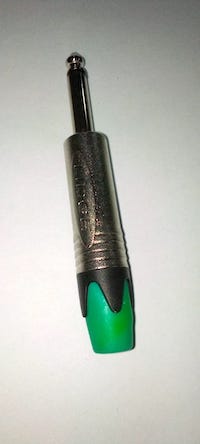

The 6.35mm (1/4") Male Jack Audio Plug is a standard connector used primarily in audio equipment for instruments, amplifiers, headphones, and audio cables. It provides a reliable connection for transmitting analog audio signals with minimal interference.
Key Features:
- Connector Type: Male jack (plug)
- Compatibility: Compatible with various audio equipment including guitars, keyboards, amplifiers, microphones, and headphones.
- Material: Typically constructed from durable metal (such as nickel-plated brass) for longevity and reliable signal transmission.
- Termination: Solder terminals for secure connection to audio cables.
- Usage: Designed for professional and consumer audio applications where a robust connection is required.
- Connector Size: 6.35mm (1/4 inch)
- Contact Material: Nickel-plated brass or similar conductive material
- Termination Type: Solder terminals
- Insulation: Insulated housing to prevent short circuits and ensure safety
- Applications: Suitable for live performances, recording studios, home audio systems, and musical instruments.
Technical Specifications:
- Logic Family: CMOS
- Number of Channels: 3
- Switch Configuration: Single-Pole Double-Throw (SPDT)
- Supply Voltage Range: 3V to 15V
- “ON” Resistance (R_ON): 125Ω typical at V_DD = 10V
- “OFF” Leakage Current (I_OFF): ±100pA typical at V_DD = 10V
- Control Input Voltage (V_IH): 0.7 V_DD min, 0.3 V_DD max
- Maximum Operating Frequency: 40 MHz at V_DD = 10V
