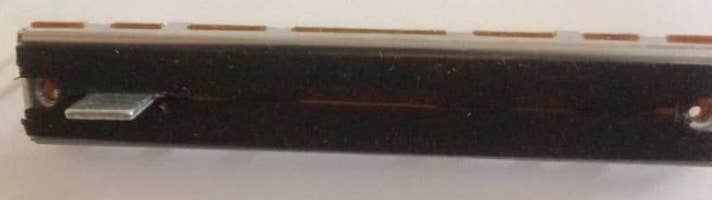

Short Amplifier mixer Linear potentiometer
This content will be shared across all product pages.
The Short Amplifier Mixer Linear Potentiometer is a compact, high-precision adjustable resistor designed for audio applications. It provides accurate control over volume, tone, and other audio parameters. This potentiometer is ideal for use in audio mixing consoles, amplifiers, and various audio equipment where space is limited.
Key Features:
- Type: Linear potentiometer
- Resistance Range: Typically ranges from 10kΩ to 100kΩ
- Adjustment Type: Short sliding or rotary adjustment
- High Precision: Ensures accurate control over audio signals
- Durable Construction: Built with high-quality materials for reliability and longevity
- Compact Design: Suitable for space-constrained applications
- Resistance Range: 10kΩ, 50kΩ, 100kΩ (varies by model)
- Tolerance: ±10%
- Adjustment Type: Short sliding or rotary
- Maximum Voltage: 200V DC
- Rated Power: 0.5W
- Temperature Coefficient: ±100ppm/°C
- Mechanical Life: 100,000 cycles
- Operating Temperature: -10°C to +70°C (14°F to 158°F)
- Mounting Type: Through-hole or surface mount
- Dimensions: Typically shorter in length compared to standard potentiometers
- Weight: Lightweight for easy integration into designs
- Audio Mixing Consoles: Precise adjustment of volume, tone, and effects levels
- Amplifiers: Fine control of gain and output levels
- Synthesizers: Accurate adjustment of various audio parameters
- Home Audio Equipment: Enhanced volume and tone control in home audio systems
- Professional Audio Gear: Used in professional audio equipment for superior control
Technical Specifications:
- Logic Family: CMOS
- Number of Channels: 3
- Switch Configuration: Single-Pole Double-Throw (SPDT)
- Supply Voltage Range: 3V to 15V
- “ON” Resistance (R_ON): 125Ω typical at V_DD = 10V
- “OFF” Leakage Current (I_OFF): ±100pA typical at V_DD = 10V
- Control Input Voltage (V_IH): 0.7 V_DD min, 0.3 V_DD max
- Maximum Operating Frequency: 40 MHz at V_DD = 10V
Applications:
- Signal routing and switching
- Analog and digital multiplexing
- Audio and video signal processing
- Data acquisition systems
- Test equipment
