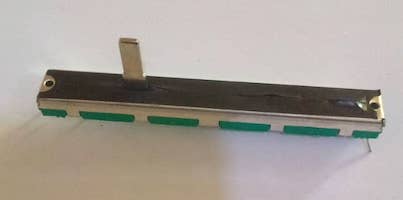

Green Amplifier mixer Linear potentiometer
This content will be shared across all product pages.
The Green Amplifier Mixer Linear Potentiometer is a high-quality, adjustable resistor used in audio applications to control volume, tone, and other audio parameters. It is commonly used in audio mixing consoles, amplifiers, and other audio equipment to provide smooth and precise control over audio signals.
Key Features:
- Type: Linear potentiometer
- Resistance Range: Typically ranges from 10kΩ to 100kΩ
- Adjustment Type: Sliding or rotary adjustment
- Durable Construction: Built with high-quality materials for longevity
- Smooth Operation: Provides smooth and precise control
- Color: Green for easy identification
- Resistance Range: 10kΩ, 50kΩ, 100kΩ (varies by model)
- Tolerance: ±10%
- Adjustment Type: Sliding or rotary
- Maximum Voltage: 200V DC
- Rated Power: 0.5W
- Temperature Coefficient: ±100ppm/°C
- Mechanical Life: 100,000 cycles
- Operating Temperature: -10°C to +70°C (14°F to 158°F)
- Mounting Type: Through-hole or surface mount
- Dimensions: Varies by model
- Weight: Typically lightweight for easy integration into designs
- Audio Mixing Consoles: Adjust volume, tone, and effects levels
- Amplifiers: Control gain and output levels
- Synthesizers: Adjust various audio parameters
- Home Audio Equipment: Volume and tone control in home audio systems
- Professional Audio Gear: Used in various professional audio equipment for precise audio control
Technical Specifications:
- Logic Family: CMOS
- Number of Channels: 3
- Switch Configuration: Single-Pole Double-Throw (SPDT)
- Supply Voltage Range: 3V to 15V
- “ON” Resistance (R_ON): 125Ω typical at V_DD = 10V
- “OFF” Leakage Current (I_OFF): ±100pA typical at V_DD = 10V
- Control Input Voltage (V_IH): 0.7 V_DD min, 0.3 V_DD max
- Maximum Operating Frequency: 40 MHz at V_DD = 10V
Applications:
- Signal routing and switching
- Analog and digital multiplexing
- Audio and video signal processing
- Data acquisition systems
- Test equipment
