1N4001 diode

https://www.hub360.cc/web/image/product.template/11844/image_1920?unique=32986b9
(0 review)
13 sold in last 24 hours

₦ 9.30 9.3 NGN ₦ 9.30 Tax Excluded

₦ 10.00 Tax Excluded

Not Available For Sale

(₦ 0.00 / Units)
6 people are viewing this right now

This combination does not exist.

This content will be shared across all product pages.

Contact Us

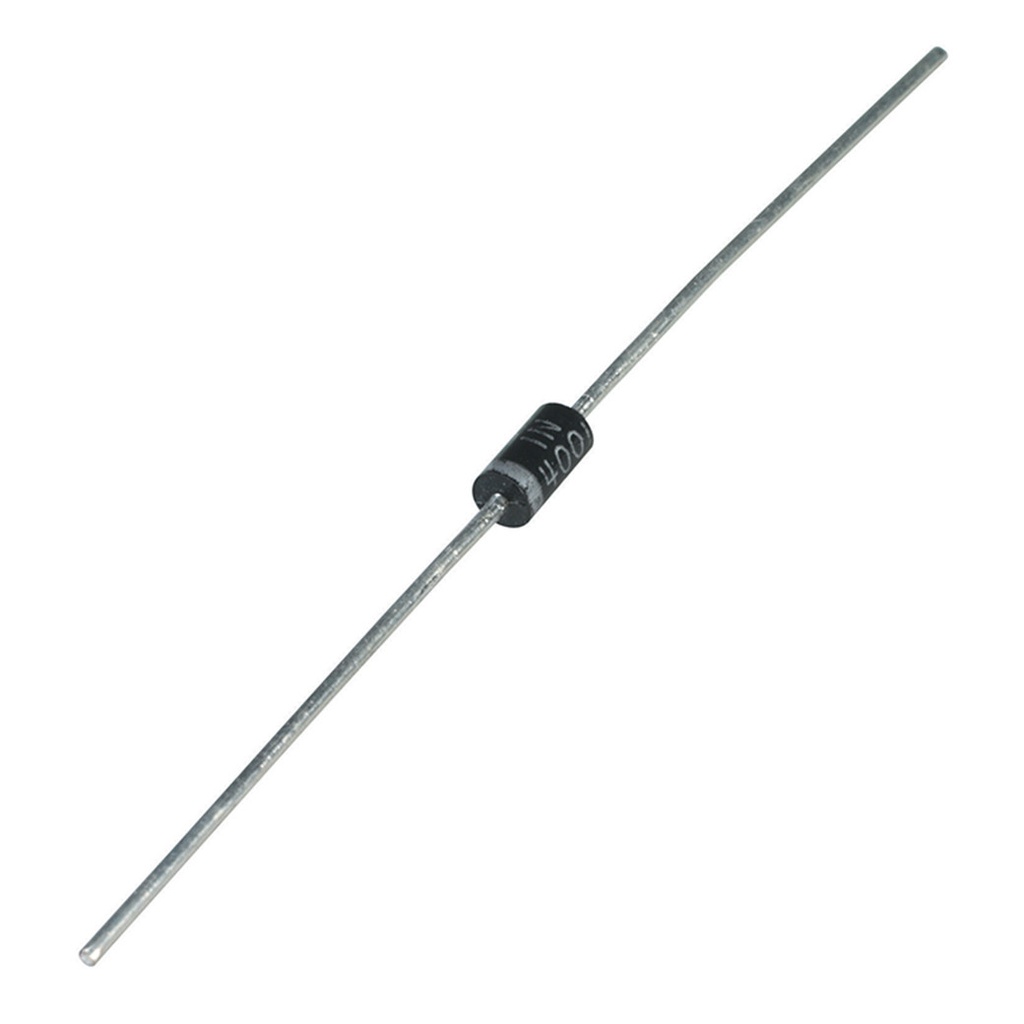

The 1N4001 is a general-purpose rectifier diode designed for a wide range of applications including power supplies, converters, and freewheeling diodes. This silicon diode is known for its reliability, low forward voltage drop, and high surge current capability. It is suitable for use in circuits requiring rectification, reverse polarity protection, and other general-purpose diode functions. Key Features:
  • Type: Silicon rectifier diode
  • Forward Voltage Drop (Vf): Typically 1.1V at 1A
  • Average Rectified Current (Io): 1A
  • Peak Repetitive Reverse Voltage (Vrrm): 50V
  • Surge Current (Ifsm): 30A
  • Recovery Time: Standard recovery
  • Package: DO-41
Technical Specifications:
  • Maximum Repetitive Peak Reverse Voltage (Vrrm): 50V
  • Maximum RMS Voltage (Vrms): 35V
  • Maximum DC Blocking Voltage (Vdc): 50V
  • Average Rectified Output Current (Io): 1A
  • Non-Repetitive Peak Forward Surge Current (Ifsm): 30A
  • Forward Voltage (Vf): 1.1V at 1A
  • Reverse Current (Ir): 5µA at 50V
  • Operating Temperature Range: -65°C to +150°C
Applications:
  • Power supply rectification
  • Freewheeling diode in motor applications
  • Reverse polarity protection
  • Converters and inverters
  • General-purpose diode functions
Usage:
  1. Connect the anode (positive lead) to the positive side of the circuit.
  2. Connect the cathode (marked with a band) to the negative side of the circuit.
  3. Ensure the diode is correctly oriented to prevent reverse voltage damage.
  4. Integrate the diode into the circuit to achieve the desired rectification or protection function.
Caution:
  • Verify the voltage and current ratings to ensure compatibility with your circuit.
  • Avoid exceeding the maximum ratings to prevent damage to the diode.
  • Ensure proper thermal management if operating near maximum current ratings.
Datasheet: For detailed technical specifications, refer to the 1N4001 Diode Datasheet.

Technical Specifications:

  • Logic Family: CMOS
  • Number of Channels: 3
  • Switch Configuration: Single-Pole Double-Throw (SPDT)
  • Supply Voltage Range: 3V to 15V
  • “ON” Resistance (R_ON): 125Ω typical at V_DD = 10V
  • “OFF” Leakage Current (I_OFF): ±100pA typical at V_DD = 10V
  • Control Input Voltage (V_IH): 0.7 V_DD min, 0.3 V_DD max
  • Maximum Operating Frequency: 40 MHz at V_DD = 10V

Applications:

  • Signal routing and switching
  • Analog and digital multiplexing
  • Audio and video signal processing
  • Data acquisition systems
  • Test equipment
