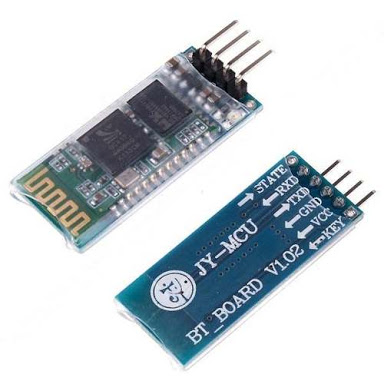

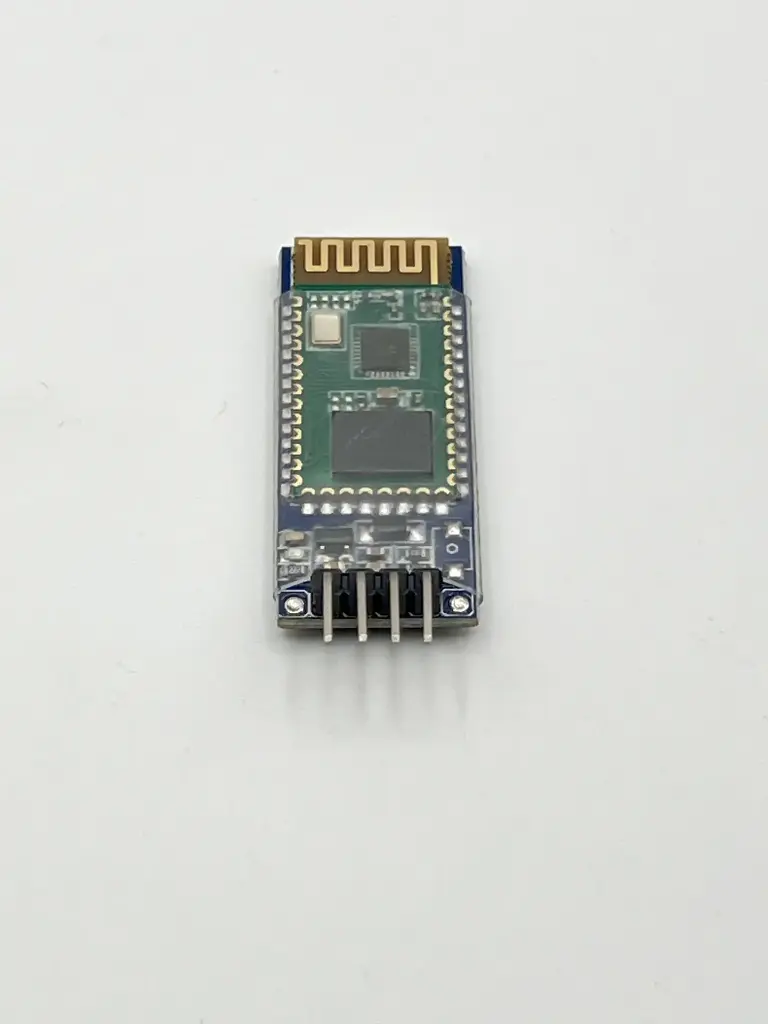

hc-06 bluetooth module
The HC-06 Bluetooth Module is a low-cost, easy-to-use Bluetooth SPP (Serial Port Protocol) module designed for transparent wireless serial communication. It enables devices to communicate wirelessly over a short range, making it ideal for use in wireless communication projects, home automation, and other embedded systems.
Key Features:
- Bluetooth V2.0+EDR (Enhanced Data Rate) compliant
- Serial port Bluetooth module for wireless communication
- Easy to interface with microcontrollers using UART
- Default baud rate of 9600 bps (configurable)
- Supports both Master and Slave modes
- Compact design with built-in antenna
- Low power consumption
- LED indicator for connection status
- Bluetooth Standard: Bluetooth V2.0+EDR
- Frequency Range: 2.4 GHz ISM band
- Operating Voltage: 3.3V to 5V
- Operating Current: 30 mA (typical)
- Communication Range: Up to 10 meters (unobstructed)
- Default Baud Rate: 9600 bps (configurable from 4800 bps to 115200 bps)
- Data Bits: 8
- Stop Bits: 1
- Parity: None
- UART Interface: TX, RX, VCC, GND
- Dimensions: Approximately 28mm x 15mm x 2.5mm
- Weight: 2g
- Wireless serial communication
- Home automation systems
- Remote control systems
- Data acquisition systems
- Wireless sensors
- Robotics and DIY projects
- Wireless data logging
- Connection:
- Connect the VCC pin to a 3.3V to 5V power supply.
- Connect the GND pin to ground.
- Connect the TX pin of the module to the RX pin of the microcontroller.
- Connect the RX pin of the module to the TX pin of the microcontroller.
- Pairing:
- Power on the module; it will enter pairing mode, indicated by a flashing LED.
- Search for the module using a Bluetooth-enabled device (e.g., smartphone, tablet, PC) and pair with it. The default pairing code is usually "1234" or "0000."
- Once paired, the LED will stop flashing and remain on, indicating a successful connection.
- Communication:
- Use serial communication commands to send and receive data between the microcontroller and the paired device.
- Configure the module's settings (e.g., baud rate) if necessary using AT commands.
- Ensure proper voltage levels to avoid damaging the module.
- Handle the module carefully to avoid static discharge and physical damage.
- Avoid placing the module near metal objects to maintain optimal signal strength.
