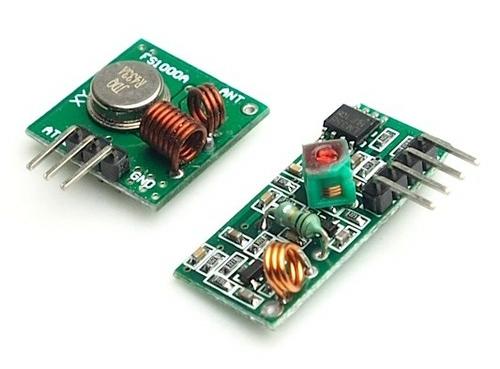

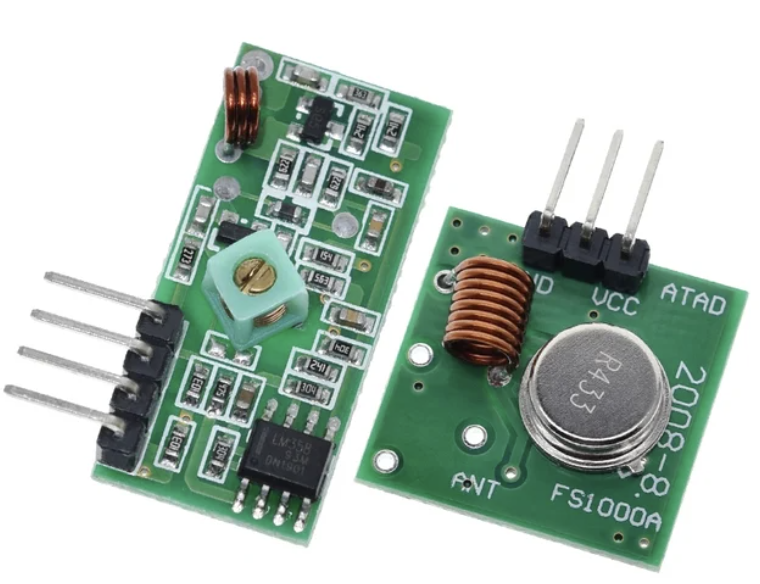

RF transmitters and receivers

RF (Radio Frequency) Transmitters and Receivers are essential components for wireless communication systems. They are used to transmit and receive radio signals over a distance, making them ideal for remote control, data transmission, and wireless sensor networks. These modules are compact, efficient, and easy to integrate into various electronic projects, providing a reliable solution for wireless communication. Key Features:

• Wireless Communication: Enables data transmission without physical connections.
• Compact Design: Small size suitable for integration in various projects.
• High Frequency: Operates 433 MHz for clear and stable communication.
• Low Power Consumption: Efficient operation for battery-powered applications.
• Easy Integration: Simple interfacing with microcontrollers and other digital devices.
• Long Range: Capable of transmitting signals over significant distances, depending on the environment and power output.

Technical Specifications:

• Frequency:  433 MHz
• Operating Voltage: 3V to 12V (varies by model)
• Data Rate: Up to 10 kbps (varies by model)
• Range: Up to 100 meters (open space, line of sight)
• Modulation: ASK (Amplitude Shift Keying) / OOK (On-Off Keying)
• Transmitter Power: Typically 10mW (varies by model)
• Receiver Sensitivity: Typically -105 dBm (varies by model)

Applications:

• Remote Controls: Used in remote control systems for various appliances and devices.
• Wireless Data Transmission: Transfer data between microcontrollers without physical connections.
• Home Automation: Control lights, doors, and other home systems wirelessly.
• Wireless Sensor Networks: Collect and transmit sensor data over a wireless network.
• Robotics: Implement wireless communication between robots and control systems.
• Security Systems: Use in alarm systems for transmitting signals from sensors to central units.

Usage:

1. Wiring: Connect the transmitter and receiver modules to your microcontroller or control circuit.
2. Programming: Write code to send and receive data wirelessly using available libraries for platforms like Arduino.
3. Testing: Test the communication range and reliability in your specific environment.
4. Integration: Integrate the modules into your final project, ensuring a stable power supply and secure connections.

Caution:

• Interference: Avoid placing near other electronic devices that may cause interference.
• Antenna: Use appropriate antennas to maximize range and signal strength.
• Power Supply: Ensure the modules are supplied with the correct voltage to avoid damage.
• Legal Compliance: Adhere to local regulations regarding RF transmissions and frequencies.

Datasheet: For detailed technical specifications, refer to the RF Transmitter and Receiver Datasheet.
