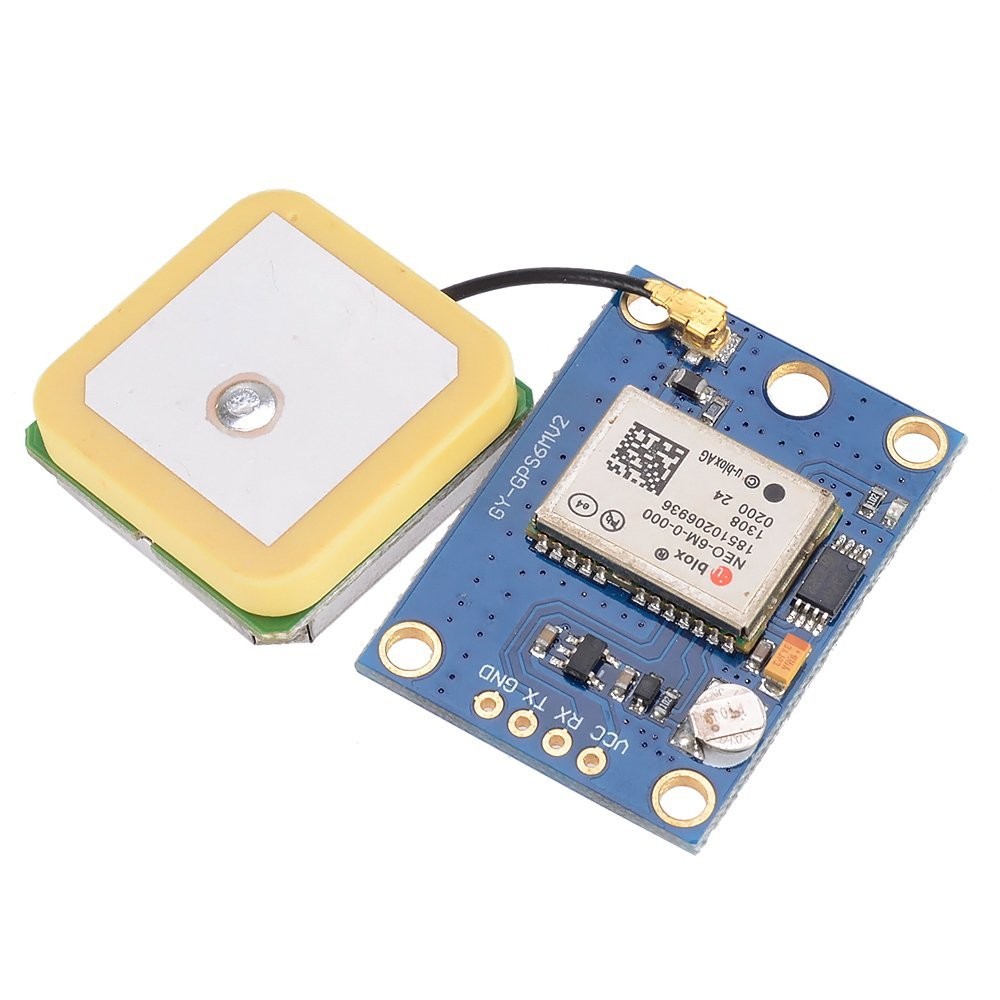

NEO-6M V2 GPS module
The NEO-6M V2 GPS Module is a highly reliable and precise GPS receiver designed for various applications requiring accurate location tracking and timing. This module is based on the u-blox NEO-6M GPS receiver, providing high sensitivity and low power consumption. It is widely used in navigation, tracking, and timing applications.
Key Features:
- High sensitivity and accuracy
- Supports GPS, QZSS, and SBAS (WAAS, EGNOS, MSAS)
- Low power consumption
- Compact size and easy integration
- Built-in EEPROM for configuration storage
- Onboard battery for faster cold starts
- TTL logic level compatible
- Antenna connection with SMA connector
- Receiver Type: 50 channels, GPS L1 C/A code
- Sensitivity: -161 dBm (tracking), -148 dBm (cold starts)
- Update Rate: Up to 5 Hz
- Accuracy: Position: 2.5 m CEP, Velocity: 0.1 m/s, Time: 30 ns
- Cold Start Time: 27 seconds
- Hot Start Time: 1 second
- Operating Voltage: 3.3V to 5V
- Power Consumption: 37 mA
- Communication Interface: UART (TTL), default baud rate: 9600 bps
- Antenna: External active antenna via SMA connector
- Dimensions: 25 mm x 35 mm x 6 mm
- Operating Temperature Range: -40°C to +85°C
- Vehicle and personal navigation
- Asset tracking
- Drone and UAV navigation
- Timing applications
- Geocaching
- Marine navigation
- Location-based services
- Power Supply: Connect the module to a 3.3V or 5V power supply.
- Antenna Connection: Attach an external active GPS antenna to the SMA connector.
- Communication Setup: Connect the UART pins (TX, RX) to a microcontroller or serial interface with a compatible TTL logic level.
- Configuration: Configure the module settings if necessary using appropriate software or commands.
- Data Reception: Receive GPS data through the UART interface and process it for your application.
- Position Fix: Wait for the module to acquire satellite signals and provide a position fix.
- Ensure the module is powered within the specified voltage range.
- Use a suitable GPS antenna for optimal performance.
- Follow proper ESD handling procedures to prevent damage.
- Place the antenna in a location with a clear view of the sky for best signal reception.
