104 0.1uf 100nf 100000pf Monolithic Capacitor
This content will be shared across all product pages.

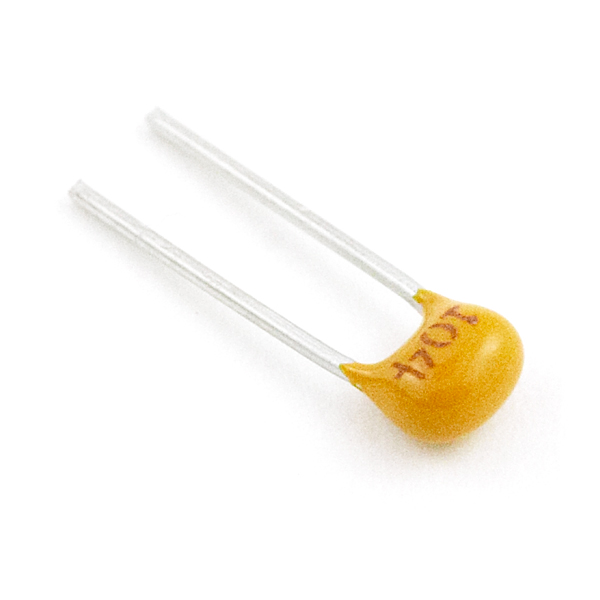

The 104 Monolithic Capacitor is a versatile ceramic capacitor with a capacitance value of 0.1 microfarads (uF), equivalent to 100 nanofarads (nF) or 100000 picofarads (pF). This capacitor is commonly used in various electronic circuits for filtering, bypassing, coupling, and decoupling applications due to its high stability and reliability. Its monolithic construction ensures excellent performance in both high-frequency and general-purpose applications.
Key Features:
- Capacitance: 0.1uF / 100nF / 100000pF
- Monolithic ceramic construction
- High stability and reliability
- Low ESR (Equivalent Series Resistance)
- Compact size
- Suitable for high-frequency applications
- Wide operating temperature range
- Capacitance: 0.1uF (100nF / 100000pF)
- Tolerance: ±10%
- Rated Voltage: 50V
- Temperature Coefficient: X7R
- Operating Temperature Range: -55°C to +125°C
- Package Type: Through-hole or SMD (Surface Mount Device)
- Dimensions: Standard monolithic capacitor size
- Power supply filtering and noise suppression
- Signal coupling and decoupling in audio and RF circuits
- Timing and oscillation circuits
- Bypass capacitors in digital and analog circuits
- General-purpose use in electronic devices and projects
- Identify the correct position for the capacitor in your circuit.
- Insert the capacitor leads into the designated holes on a PCB or solder it onto the pads for SMD versions.
- Ensure proper polarity if applicable (monolithic capacitors are typically non-polarized).
- Solder the leads or pads securely.
- Verify the connections and ensure the capacitor is properly integrated into the circuit.
- Handle the capacitor with care to avoid damage to the ceramic material.
- Ensure the rated voltage is not exceeded to prevent capacitor failure.
- Store in a dry and static-free environment.
Technical Specifications:
- Logic Family: CMOS
- Number of Channels: 3
- Switch Configuration: Single-Pole Double-Throw (SPDT)
- Supply Voltage Range: 3V to 15V
- “ON” Resistance (R_ON): 125Ω typical at V_DD = 10V
- “OFF” Leakage Current (I_OFF): ±100pA typical at V_DD = 10V
- Control Input Voltage (V_IH): 0.7 V_DD min, 0.3 V_DD max
- Maximum Operating Frequency: 40 MHz at V_DD = 10V
Applications:
- Signal routing and switching
- Analog and digital multiplexing
- Audio and video signal processing
- Data acquisition systems
- Test equipment
