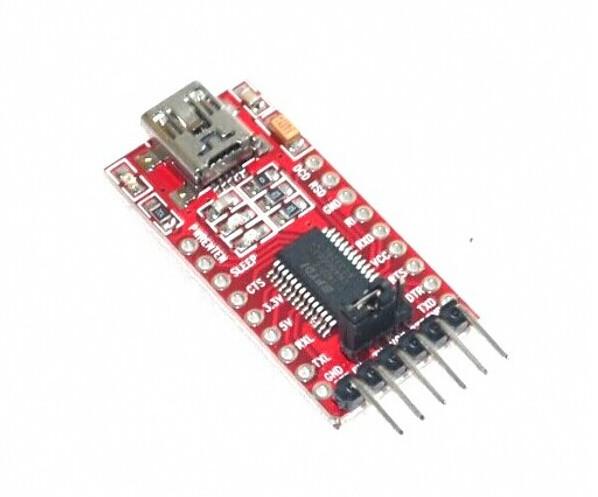

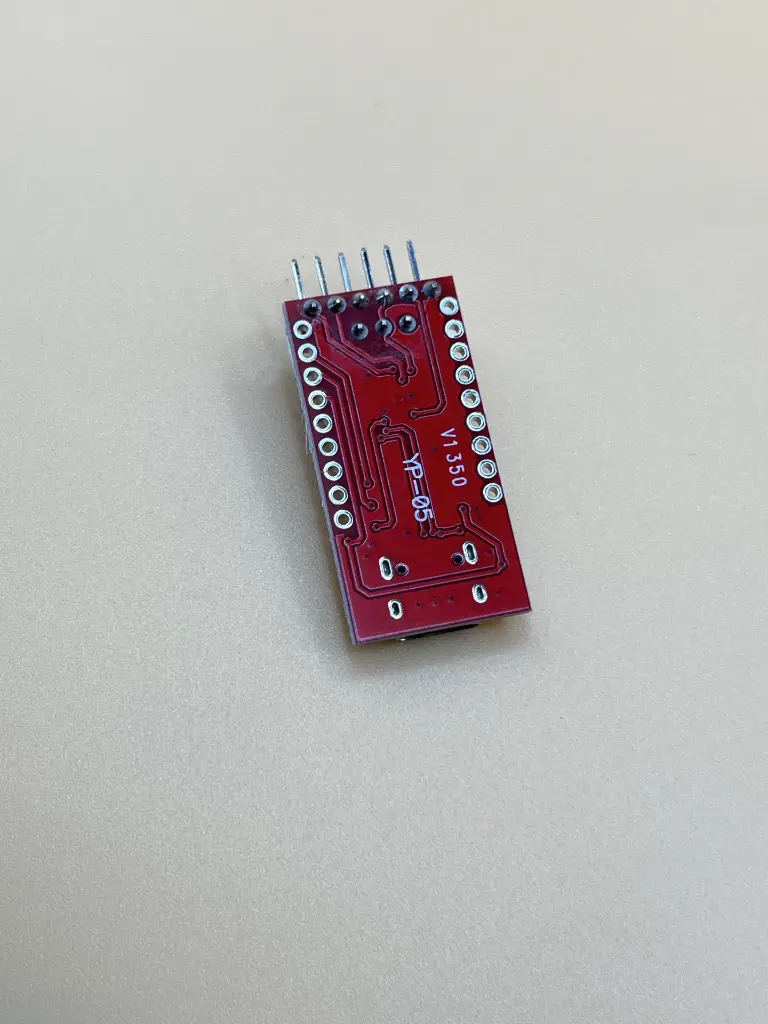

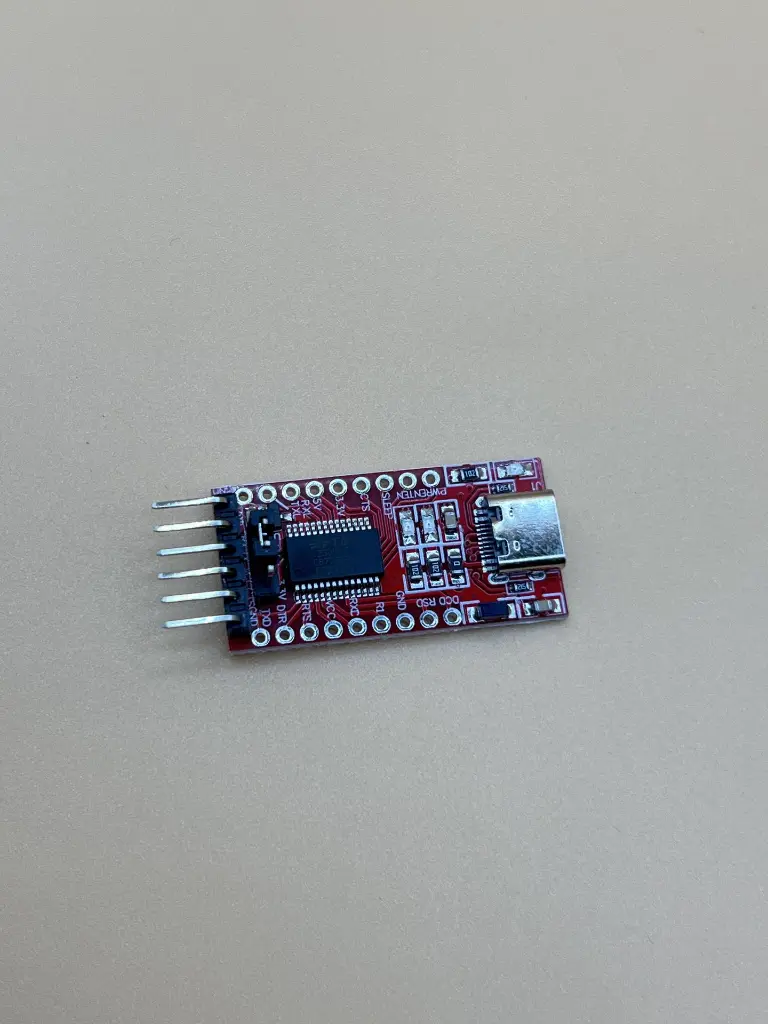

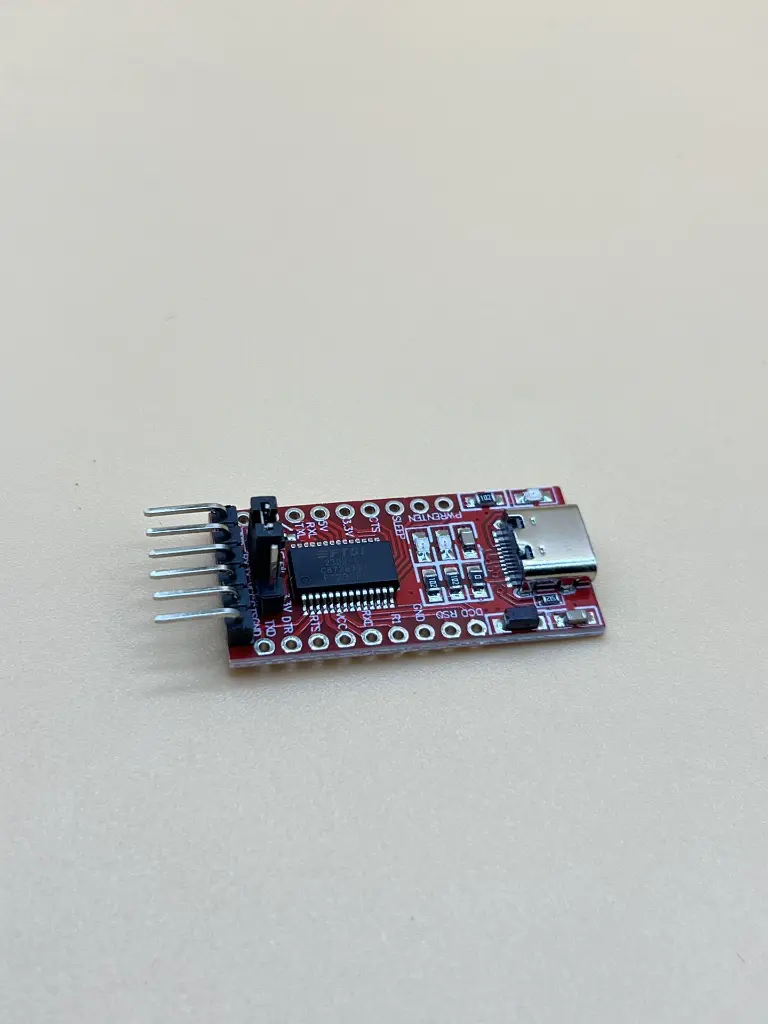

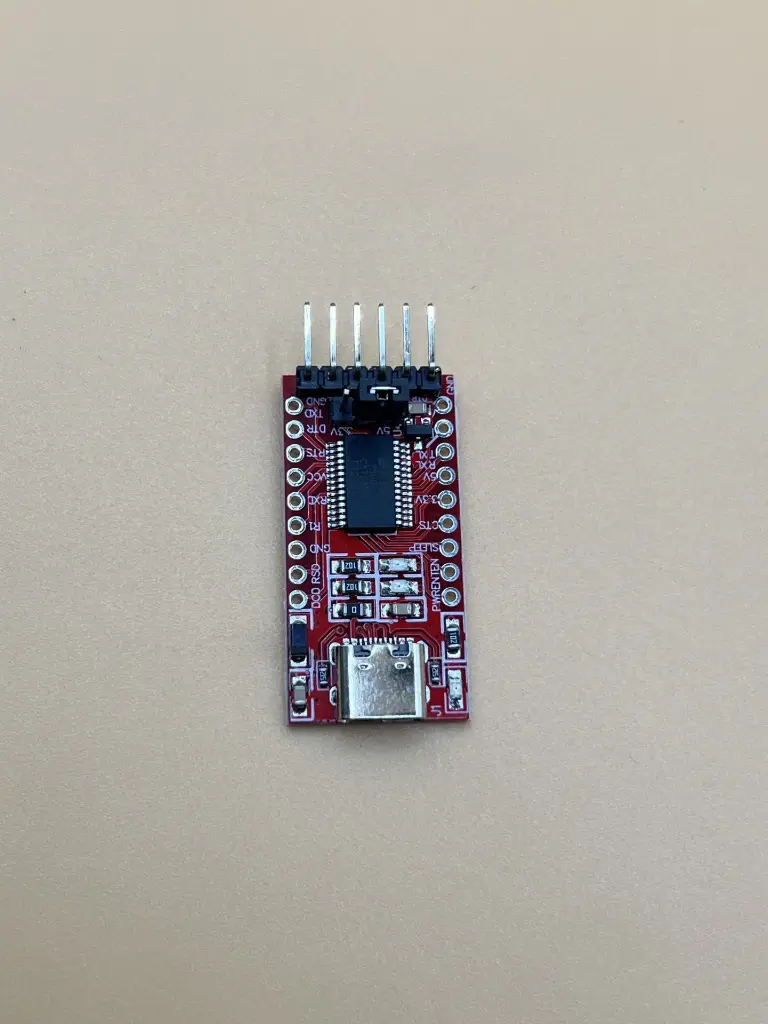

The USB to TTL FT232 is a USB-to-serial converter module that uses the FTDI FT232 chip to convert USB signals to TTL (Transistor-Transistor Logic) level serial communication. This module is commonly used to interface USB-enabled devices with TTL serial devices, such as microcontrollers and development boards. It provides a convenient way to connect devices that use TTL serial communication to a computer via a USB port. Key Features:
  • Chip: FTDI FT232
  • Interface: USB to TTL serial (UART)
  • Data Rate: Up to 3 Mbps
  • Operating Voltage: 3.3V or 5V TTL levels (configurable)
  • Driver Support: Compatible with major operating systems including Windows, macOS, and Linux
  • Connector: Typically includes a USB Type-A or Type-B connector and TTL pins (TX, RX, VCC, GND)
  • LED Indicators: Often includes LEDs to indicate power and data transmission
Technical Specifications:
  • USB Interface: USB 2.0
  • TTL Levels: 3.3V or 5V (depends on the module configuration)
  • Data Rate: Up to 3 Mbps
  • Driver Support: FTDI drivers for Windows, macOS, and Linux
  • Pin Configuration:
    • TX: Transmit data
    • RX: Receive data
    • VCC: Power supply (3.3V or 5V)
    • GND: Ground
  • Power Supply: Powered via USB (typically 5V from USB)
Applications:
  • Microcontroller Programming: Used for programming and debugging microcontrollers that use TTL serial communication.
  • Serial Communication: Facilitates communication between USB-equipped computers and serial devices.
  • Embedded Systems: Connects embedded systems to PCs for data exchange and control.
  • Prototyping: Commonly used in electronic prototypes to bridge the gap between USB and TTL serial interfaces.
Datasheet: For detailed technical information, refer to the FTDI FT232 Datasheet, which provides comprehensive details on specifications, pin configuration, and operation.

Technical Specifications:

  • Logic Family: CMOS
  • Number of Channels: 3
  • Switch Configuration: Single-Pole Double-Throw (SPDT)
  • Supply Voltage Range: 3V to 15V
  • “ON” Resistance (R_ON): 125Ω typical at V_DD = 10V
  • “OFF” Leakage Current (I_OFF): ±100pA typical at V_DD = 10V
  • Control Input Voltage (V_IH): 0.7 V_DD min, 0.3 V_DD max
  • Maximum Operating Frequency: 40 MHz at V_DD = 10V

Applications:

  • Signal routing and switching
  • Analog and digital multiplexing
  • Audio and video signal processing
  • Data acquisition systems
  • Test equipment
