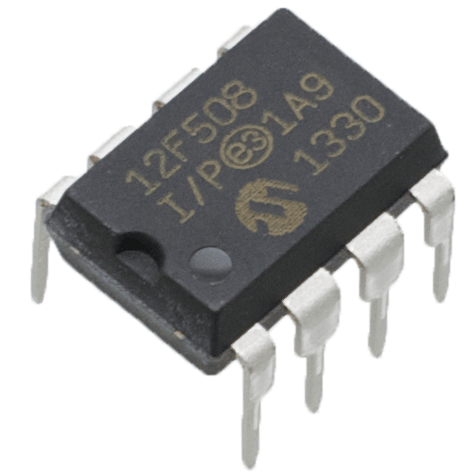

The PIC12F508/509/16F505 devices from Microchip Technology are low-cost, high-performance, 8-bit, fullystatic, Flash-based CMOS microcontrollers. They employ a RISC architecture with only 33 single-word/single-cycle instructions. All instructions are single cycle (200 µs) except for program branches, which take two cycles. The PIC12F508/509/16F505 devices deliver performance an order of magnitude higher than their competitors in the same price category. The 12-bit wide instructions are highly symmetrical, resulting in a typical 2:1 code compression over other 8-bit microcontrollers in its class. The easy-to-use and easy to remember instruction set reduces development time significantly.

Features

• Precision 4 MHz internal oscillator
• Baseline Core with 33 Instructions, 2 Stack Levels
• All single-cycle Instructions except for program branches which are two cycles
• 12-bit wide instructions
• 8-bit wide data path
• 25 mA source/sink current I/O
• Low power (100nA) sleep current
• One 8-bit timer (TMR0)
• Watchdog timer (WDT)
• In Circuit Serial Programmingâ„¢ (ICSPâ„¢) capability
• In-Circuit debugging support
• Programmable code protection
