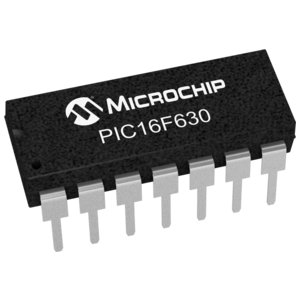

PIC16F630
The PIC16F630 is an 8-bit microcontroller from Microchip Technology, designed for low-power and cost-effective applications. It features a compact 14-pin package and is suitable for a wide range of embedded applications, including automotive, consumer electronics, and industrial systems. The PIC16F630 is known for its versatility and ease of use in various control and monitoring tasks.
Key Features:
- 8-bit Microcontroller with 14-bit instruction set
- 4kB Flash memory for program storage
- 192B SRAM for data storage
- 64B EEPROM for non-volatile data storage
- 8 I/O pins for interfacing with external devices
- 1 Timer, 8-bit
- Integrated Watchdog Timer
- Internal oscillator up to 8 MHz
- Low power consumption in Sleep mode
- Supports various serial communication protocols (USART)
- Package Type: 14-pin PDIP (Plastic Dual In-line Package), SOIC, or TSSOP
- Operating Voltage: 2.0V to 5.5V
- Clock Speed: Up to 8 MHz
- Flash Memory: 4 kB
- SRAM: 192 B
- EEPROM: 64 B
- I/O Pins: 8
- Timer: 8-bit Timer
- Operating Temperature Range: -40°C to +125°C
- Automotive control systems
- Consumer electronics
- Industrial automation
- Low-power embedded systems
- Remote controls
- Sensor interfaces
- Program the PIC16F630 using a compatible programmer or development kit.
- Connect the necessary peripherals and sensors to the microcontroller’s I/O pins.
- Configure the microcontroller’s settings and features via software.
- Integrate the microcontroller into your electronic circuit for specific tasks and control functions.
- Handle with care to avoid damage from electrostatic discharge (ESD).
- Ensure proper power supply voltage and connections before powering the device.
- Follow the manufacturer's guidelines for programming and operation.
