Description

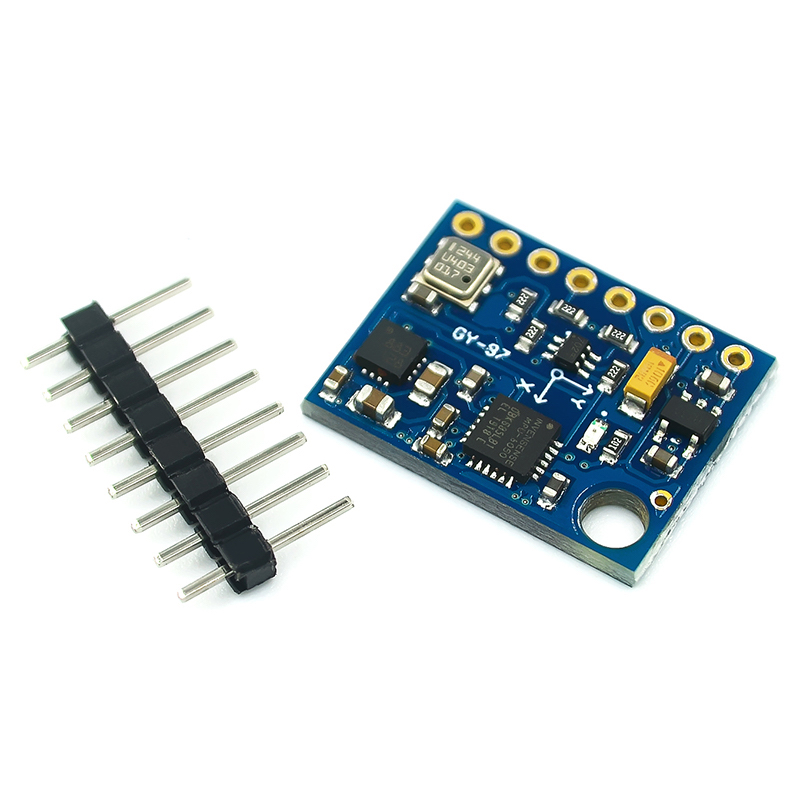

The GY-87 10DOF Sensor Module is a compact and versatile multi-sensor board that integrates three powerful sensors into a single unit: the MPU6050 (accelerometer and gyroscope), the HMC5883L (magnetometer), and the BMP180 (barometric pressure and temperature sensor).
This combination provides a complete set of motion, orientation, and environmental data, making it ideal for advanced embedded systems such as robotics, drones, and navigation projects.
Key Features
- Combines three sensors for comprehensive data acquisition
- MPU6050 with 3-axis accelerometer and 3-axis gyroscope
- HMC5883L with 3-axis magnetometer
- BMP180 for barometric pressure and temperature measurement
- I2C communication interface for simple and efficient integration
- Compact design suitable for a wide range of projects
Specification
MPU6050:
- Sensor Type: 3-axis accelerometer and 3-axis gyroscope
- Accelerometer Range: ±2g, ±4g, ±8g, ±16g
- Gyroscope Range: ±250, ±500, ±1000, ±2000 °/s
- Interface: I2C
- Operating Voltage: 3.3V – 5V DC
HMC5883L:
- Sensor Type: 3-axis magnetometer
- Measurement Range: ±1.3 to ±8.1 Gauss
- Interface: I2C
- Operating Voltage: 3.3V – 5V DC
BMP180:
- Sensor Type: Barometric pressure and temperature sensor
- Pressure Range: 300 – 1100 hPa
- Temperature Range: -40°C to +85°C
- Interface: I2C
- Operating Voltage: 3.3V – 5V DC
Overall Module Specifications:
- Communication Interface: I2C (shared across all sensors)
- Supply Voltage: 3.3V – 5V DC
- Typical Current Consumption: ~10mA
- Dimensions: Approx. 30 × 20 × 10 mm
- Mounting Type: Through-hole or connector-based
Applications:
- Robotics – motion tracking and environmental sensing
- Drones (UAVs) – orientation, altitude, and navigation control
- Wearable devices – movement and condition monitoring
- Navigation systems – enhanced positioning and direction sensing
- DIY and hobby projects – multi-sensor data collection and experimentation
Datasheet: For detailed technical information, refer to the datasheet GY-87 10DOF MPU6050 HMC5883L BMP180 sensor.
