Description

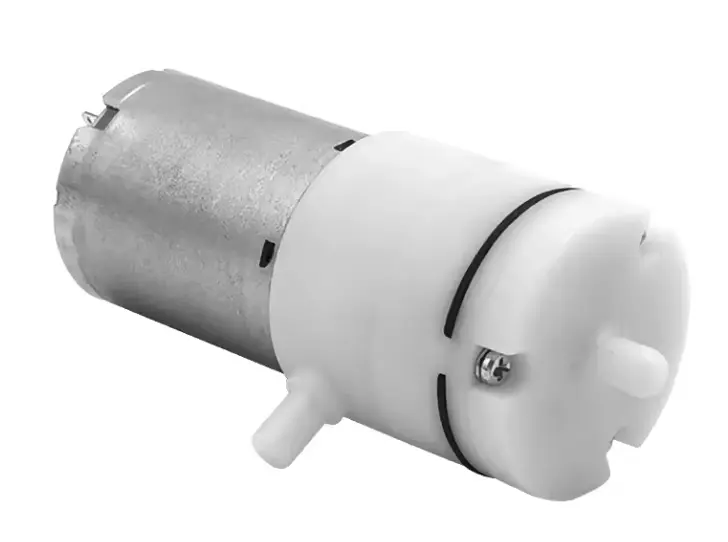

The 12V 370 Mini Air Pump is a compact and powerful micro vacuum and air compressor pump designed for both suction and inflation applications. Built with high efficiency and low noise performance, this electric air pump is perfect for beauty instruments, medical equipment, breast pumps, and DIY electronics. It operates quietly, delivers strong pressure, and ensures long service life.
Key Features
- Strong Suction Power: Generates pressure from –60kPa to –120kPa for reliable vacuum performance.
- 12V DC Operation: Compatible with standard 12V power adapters, batteries, or solar systems.
- Low Noise Design: Operates below 60dB, perfect for quiet environments.
- High Airflow Rate: Provides ≥22.8 L/min, suitable for compact air systems.
- Durable Construction: Rated for 30,000 cycles, ensuring long-lasting performance.
- Wide Temperature Range: Works effectively between 0°C and 55°C.
- Energy Efficient: Low current draw of <280mA for better power savings.
Specifications
- Model: 370 Mini Air Pump
- Rated Voltage: 12V DC
- Voltage Range: 10.8V – 13.2V
- Load Current: < 280mA
- Pressure Range: –450mmHg to –900mmHg (–60kPa to –120kPa)
- Flow Rate: ≥ 22.8 L/min
- Noise Level: < 60dB (measured at 30cm distance)
- Service Life: Up to 30,000 cycles (10s ON / 5s OFF)
- Working Fluid: Air
- Operating Temperature: 0°C – 55°C
- Weight: Approx. 35g
- Power Source: DC power supply or battery pack (12V)
Application
- Beauty Instruments: Vacuum massage, facial treatment, and suction devices.
- Medical Equipment: Portable suction units, respiratory aids, and diagnostic devices.
- DIY Electronics Projects: Air pumping or vacuum-based automation.
- Breast Pumps: Provides reliable suction for compact pumping systems.
- Air Sampling and Gas Detection: Suitable for air circulation and small pneumatic systems.
- Portable Air Systems: Inflators, air cushions, or other compact air-driven applications.
Caution:
- Keep the air pump dry and avoid exposure to water to prevent damage.
- Handle the bubble stone with care to avoid cracking or damage.
- When powered continuously (24 hours/day), lifespan is around 400–500 hours. Intermittent use (on/off cycles) significantly extends operational life.
-
Always use a DC power supply matching the pump’s rated voltage 12V adapter or battery pack.
