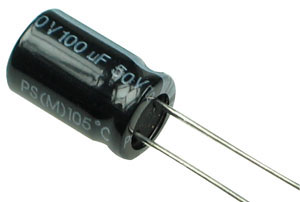

100uf 50v electrolytic capacitor
This content will be shared across all product pages.
The 100µF 50V Electrolytic Capacitor is a type of polarized capacitor widely used in electronic circuits for energy storage, filtering, and signal coupling. With a capacitance of 100µF and a maximum voltage rating of 50V, this capacitor is suitable for various applications in power supply circuits, audio equipment, and general-purpose electronic projects.
Key Features:
- Capacitance: 100µF for effective energy storage and filtering
- Voltage Rating: 50V maximum, suitable for use in circuits with voltages up to 50V
- Electrolytic Type: Polarized capacitor with high capacitance value in a compact size
- Low ESR: Designed for efficient filtering and stabilization in power supply circuits
- Durable Construction: High-quality materials for reliability and longevity
- Capacitance: 100µF
- Voltage Rating: 50V DC
- Tolerance: Typically ±20%
- ESR (Equivalent Series Resistance): Low ESR for improved performance
- Operating Temperature Range: -40°C to +85°C
- Lead Spacing: Typically 5mm or 2.5mm (check specific part number)
- Dimensions: Varies by manufacturer, typically around 8mm diameter x 11mm height
- Mounting Type: Radial (leads extend from the bottom of the capacitor)
- Power supply filtering and decoupling
- Audio signal coupling and bypassing
- Energy storage in electronic circuits
- Smoothing of voltage levels
- General-purpose electronic projects
- Identify the correct polarity of the capacitor, as electrolytic capacitors are polarized.
- Connect the positive lead to the positive voltage supply and the negative lead to the ground or negative voltage rail.
- Ensure correct placement and soldering on the PCB to avoid incorrect connections.
- Verify the voltage rating is suitable for your circuit to prevent damage.
- Do not exceed the maximum voltage rating to avoid capacitor failure.
- Observe correct polarity to prevent damage or leakage.
- Avoid short-circuiting the capacitor terminals.
- Handle with care to prevent physical damage to the capacitor.
Technical Specifications:
- Logic Family: CMOS
- Number of Channels: 3
- Switch Configuration: Single-Pole Double-Throw (SPDT)
- Supply Voltage Range: 3V to 15V
- “ON” Resistance (R_ON): 125Ω typical at V_DD = 10V
- “OFF” Leakage Current (I_OFF): ±100pA typical at V_DD = 10V
- Control Input Voltage (V_IH): 0.7 V_DD min, 0.3 V_DD max
- Maximum Operating Frequency: 40 MHz at V_DD = 10V
Applications:
- Signal routing and switching
- Analog and digital multiplexing
- Audio and video signal processing
- Data acquisition systems
- Test equipment
