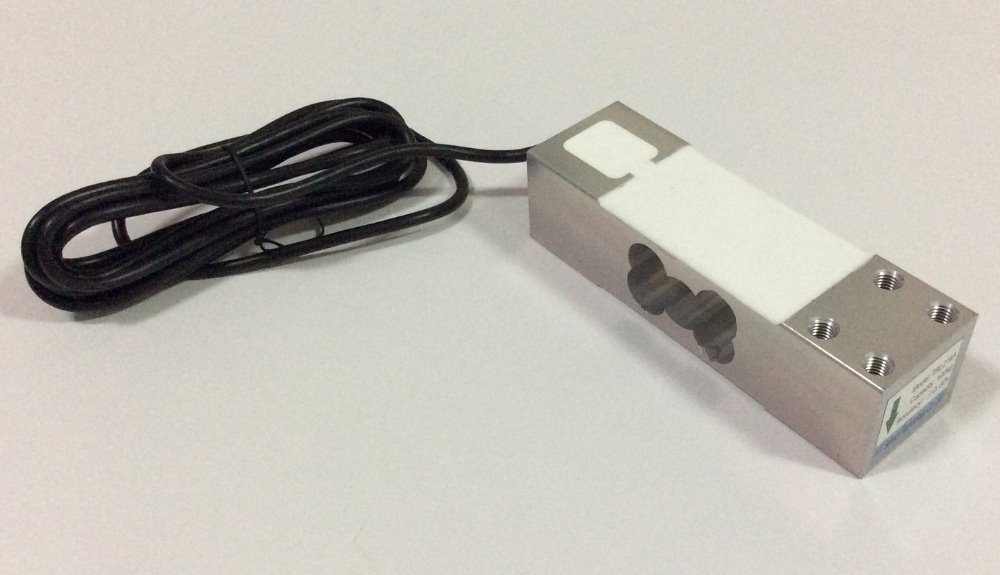

The 350kg Load Cell is a high-precision sensor designed to measure weight or force up to 350 kilograms. Ideal for industrial applications, weighing systems, and force measurement setups, this load cell ensures accurate and reliable performance. Its robust construction makes it suitable for harsh environments and demanding applications.
Key Features:
High Capacity: Measures loads up to 350kg
High Accuracy: Provides precise weight measurements
Durable Construction: Built to withstand industrial environments
Easy Integration: Simple to connect with various electronic measuring systems
Compact Design: Suitable for space-constrained applications
Temperature Compensation: Ensures consistent performance across a range of temperatures
Technical Specifications:
Capacities: 50, 75, 120, 200, 250, 350, 400 kg
Accuracy Class: 4000 n.OIML
Rated Output: 2 mV/V ± 10%
Combined Error: < ±0.017%
Non-repeatability: < ±0.01%
Creep (30 minutes): < ±0.016%
Temperature Effect on Zero Balance: < ±0.002% / ˚C
Temperature Effect on Span: < ±0.0012% / ˚C
Compensated Temperature Range: -10 to +40 ËšC
Operating Temperature Range: -20 to +70 ËšC
Minimum Dead Load: 0%
Safe Overload: 150%
Ultimate Overload: 200%
Zero Balance: < ±2%
Maximum Deflection at Nominal Capacity: 0.3 to 0.5 mm
Maximum Platform Size: 600 x 600 mm (for 50, 75, 120, 200, 350 kg capacities), 800 x 800 mm (for 250, 400 kg capacities)
Nominal Shipping Weight: 1.8 kg (for 50, 75, 120, 200, 350 kg capacities)
Applications:
Weighing systems
Industrial automation
Force measurement setups
Material testing machines
Platform scales
Hopper and tank weighing
Usage:
Mount the load cell securely to ensure accurate measurements.
Connect the load cell to an appropriate signal conditioner or measuring device.
Calibrate the load cell according to the manufacturer's instructions.
Apply the load gradually and monitor the output for accurate weight or force measurements.
Ensure regular maintenance and calibration to maintain precision.
Caution:
Avoid exceeding the rated capacity to prevent damage to the load cell.
Handle with care to prevent physical damage and ensure accurate performance.
Protect the load cell from moisture and corrosive environments.
Connection:Black power E-, white power E+, red signal S-, green signal S+Datasheet: For more detailed technical information, refer to the Load Cell Datasheet.
