Description

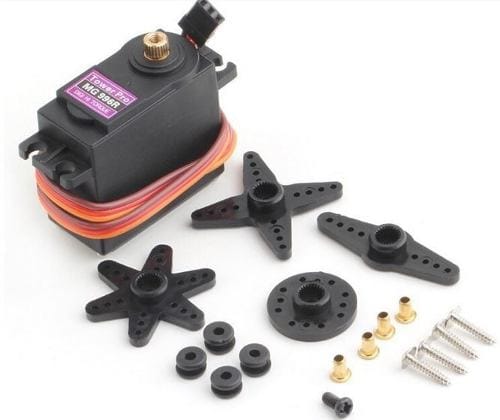

The MG996R is a high-performance, high-torque servo motor designed for applications that demand strong, precise, and reliable motion control. Featuring a full metal gear train and durable construction, the MG996R delivers excellent stability and power, making it ideal for robotics, RC vehicles, and mechanical automation systems. With its fast response time and accurate positioning, this servo is a trusted choice for both hobbyists and professionals.
Key Features
- High Torque Output: Delivers strong rotational force for heavy-duty applications.
- Metal Gear Construction: Ensures long-lasting durability and resistance to wear.
- Precise Positioning: Smooth and accurate control through PWM signal input.
- Wide Operating Voltage: Compatible with 4.8V–6.8V power supplies.
- Fast Response Speed: Quick movement for dynamic robotics and RC applications.
- Versatile Use: Supports both positional and continuous rotation control setups.
Specification
- Operating Voltage: 4.8V – 6.8V
- Torque at 4.8V: 9.4 kg·cm (130 oz·in)
- Torque at 6.0V: 11.2 kg·cm (155 oz·in)
- Speed at 4.8V: 0.20 sec/60°
- Speed at 6.0V: 0.16 sec/60°
- Operating Temperature Range: -10°C to +60°C
- Gear Material: Metal
- Control System: PWM (Pulse Width Modulation)
- Connector Type: 3-pin standard servo plug
- Dimensions: Standard servo size (approx. 40mm x 19mm x 43mm)
Application
- Robotics: Robotic arms, joints, and walking robots.
- RC Models: Cars, boats, airplanes, and helicopters.
- Automation Systems: Mechanical actuators and motion control systems.
- DIY Projects: Hobby electronics and custom motion-based projects.
- Prototyping: Ideal for testing servo-controlled mechanisms.
Usage
- Connect the servo’s signal (orange), power (red), and ground (brown) wires to your control system.
- Use a PWM signal (typically 1–2 ms pulse width) to control the servo position.
- Supply stable power within the specified 4.8V–6.8V range.
- Securely mount the servo to avoid vibration or mechanical strain.
Caution
- Do not exceed rated voltage or torque limits.
- Avoid mechanical overloading to prevent gear wear or damage.
- Ensure adequate power supply current; servos can draw high peak currents.
- Keep the servo dry and free from dust or debris.
Datasheet:
For detailed technical specifications, refer to the MG996R Datasheet.
