Description

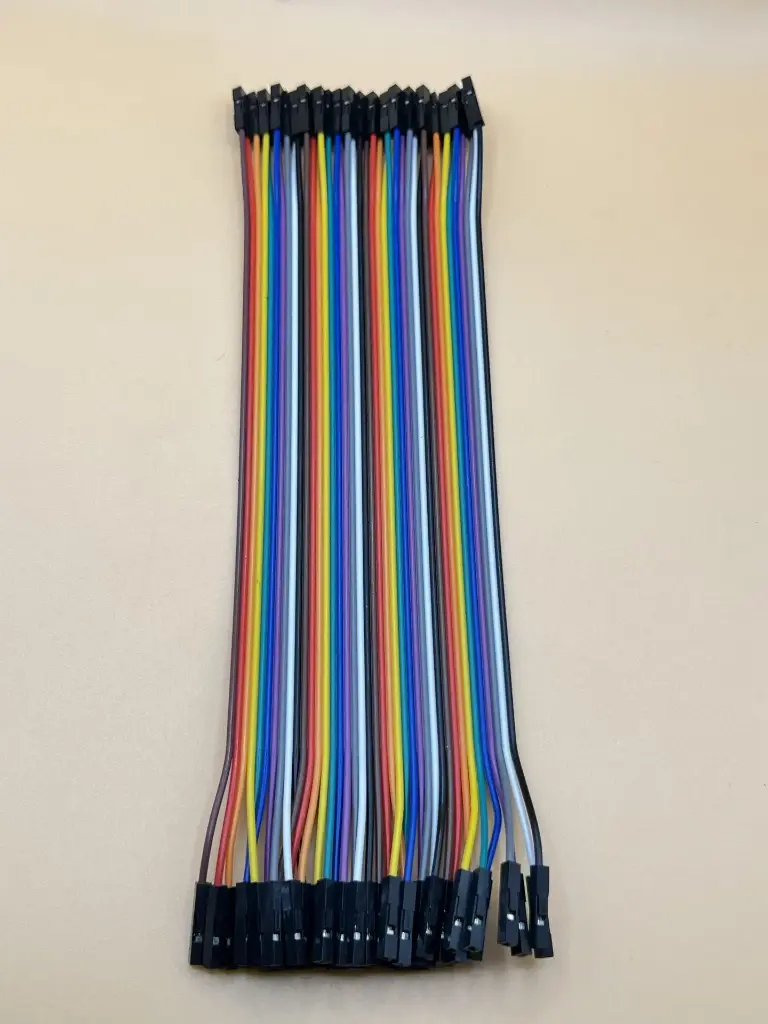

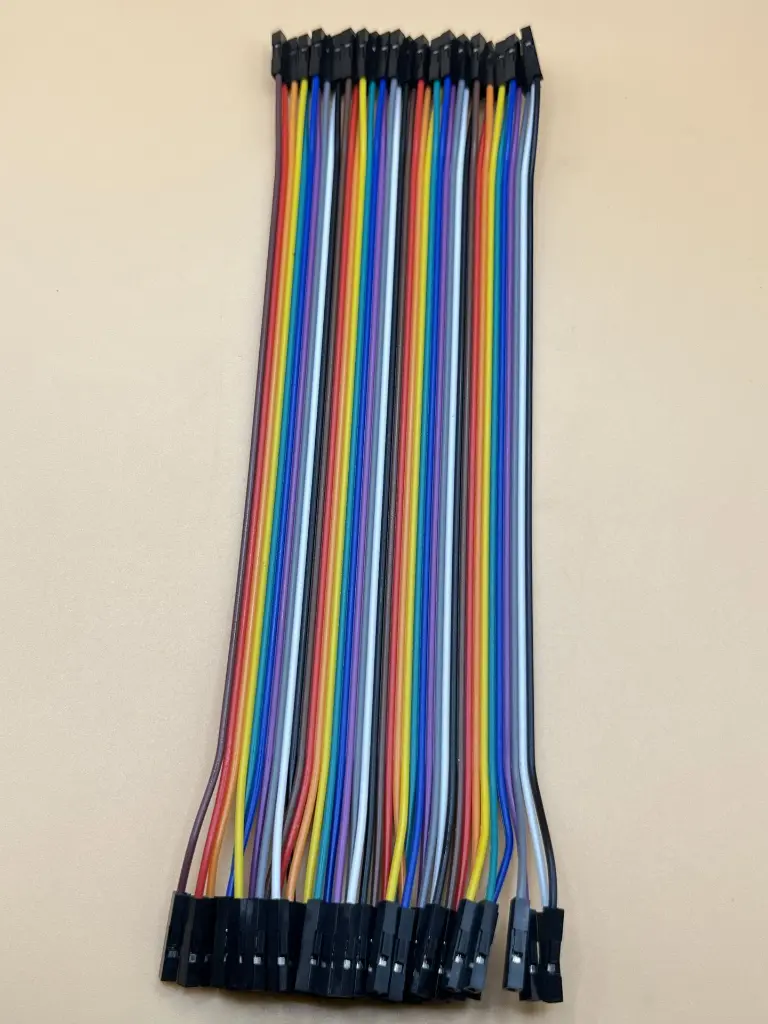

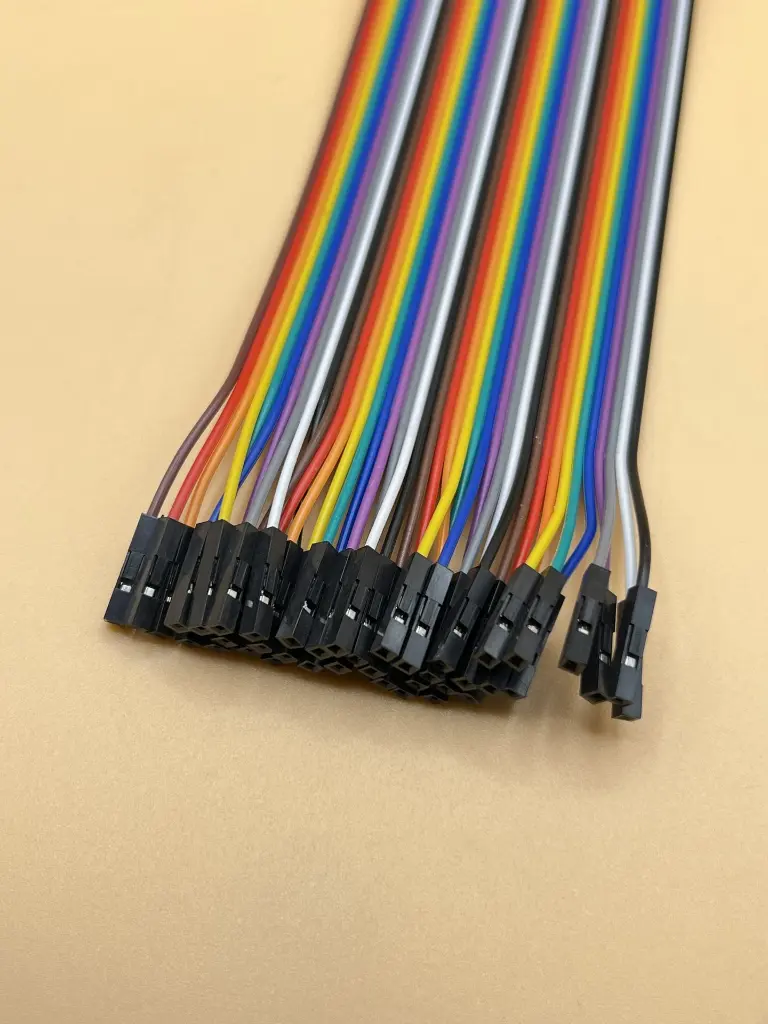

Female-to-female jumper wires are flexible, insulated connecting leads with identical female connectors crimped on both ends. These wires are essential tools for prototyping and development work with breadboards, microcontroller boards, sensors, and modules. The female connectors are designed to fit snugly over standard 2.54mm (0.1-inch) pitch header pins, such as those found on Arduino Uno, ESP32, Raspberry Pi GPIO headers, and most breakout boards.
Key Features
- Female connectors on both ends for direct attachment to header pins, component leads, and breadboard jumper wires
- Flexible, insulated wire construction allows easy routing around other components and through tight spaces
- Standard 26 AWG (American Wire Gauge) conductor provides good current capacity while remaining flexible
- Color-coded insulation (typically black, red, brown, orange, yellow, green, blue, purple, gray, white) simplifies circuit identification and organization
- High-quality materials including tin-plated brass or beryllium copper connectors for reliable, corrosion-resistant connections
- Compatible with standard 2.54mm (0.1-inch) pitch headers, including male pin headers and breadboard spring clips
- Durable PVC insulation resists cracking and provides electrical safety up to typical operating temperatures
Specifications
- Connector Type: Female to female (both ends identical)
- Wire Gauge: 26 AWG (stranded copper conductor typical)
- Conductor Material: Stranded copper (tin-plated or bare copper depending on manufacturer)
- Connector Material: Tin-plated brass or beryllium copper with stamped contact springs
- Insulation Material: PVC (Polyvinyl Chloride) or similar flexible plastic
- Pitch Compatibility: 2.54mm (0.1 inches) — standard for breadboards, Arduino, ESP32, Raspberry Pi (with adapter), and most development boards
- Operating Temperature Range: Typically -40°C to +80°C
- Current Rating: Approximately 1A to 1.5A depending on wire gauge, connector quality, and ambient temperature
- Voltage Rating: Approximately 300V AC / 600V DC (insulation dependent)
- Contact Resistance: Less than 20 milliohms typical for new connectors
- Insulation Resistance: Greater than 10 megohms
- Connector Outer Dimensions: Approximately 12mm length × 5.5mm width × 5mm height
- Connector Inner Dimensions: Accepts square header pins up to 0.65mm × 0.65mm (standard pin size)
Applications
- Prototyping
- Educational Projects
- DIY Electronics
- Temporary Connections
- Interfacing Modules
