Description

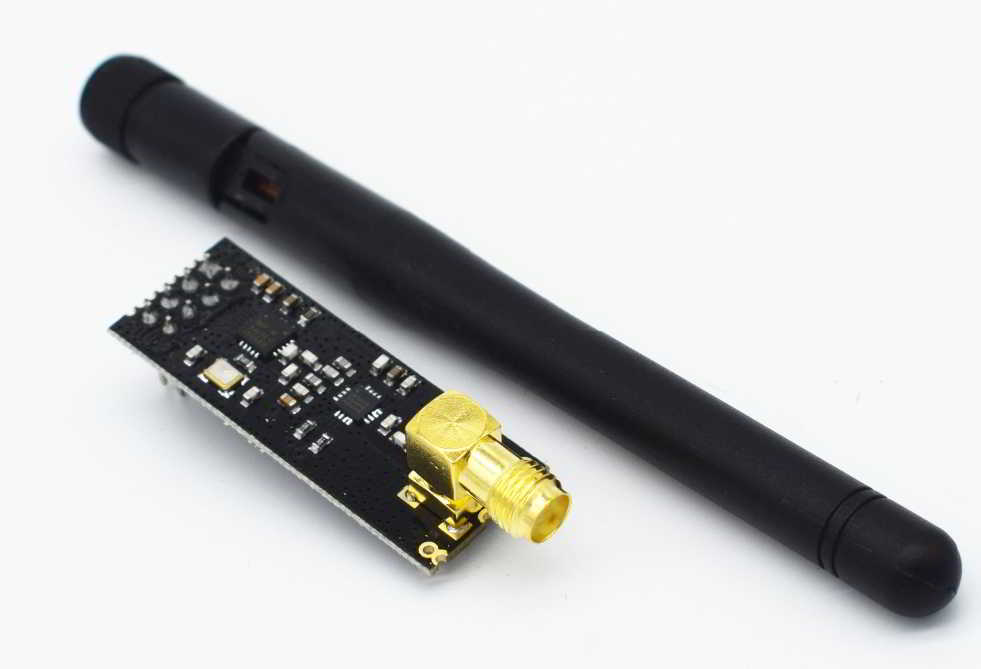

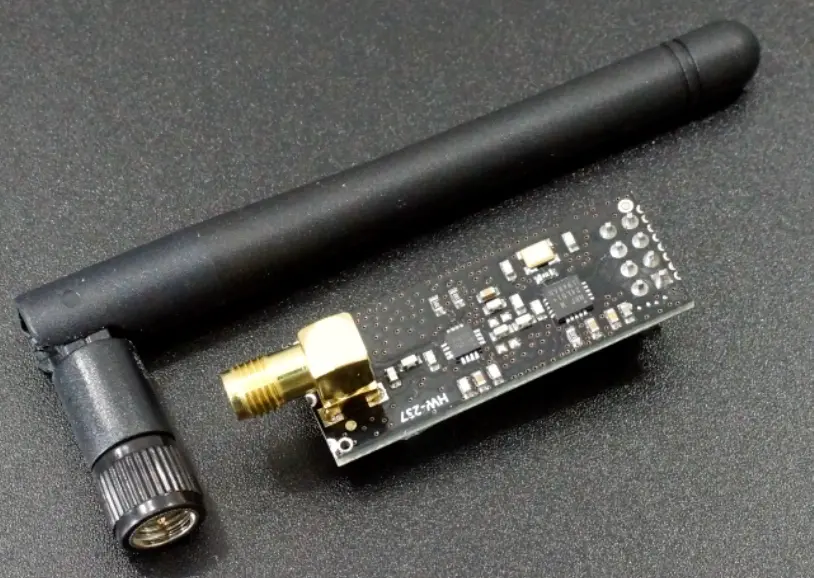

The NRF24L01 1.1km Wireless Module is a long-range transceiver module designed for reliable wireless communication over distances of up to 1.1 kilometers under optimal conditions. Operating within the 2.4 GHz ISM band, it utilizes the popular NRF24L01 chipset, known for its stability, low power consumption, and efficient data transmission. With support for multiple data rates and an SPI interface, this module is ideal for a wide range of applications, including IoT, robotics, and home automation systems.
Key Features
- Long Range Communication: Up to 1.1 kilometers (line-of-sight, optimal conditions)
- Reliable Chipset: Powered by the NRF24L01 transceiver IC
- Multiple Data Rates: Supports 250 kbps, 1 Mbps, and 2 Mbps transmission speeds
- Low Power Operation: Designed for energy-efficient wireless communication
- Standard Interface: SPI interface for easy integration with microcontrollers
- Flexible Antenna Options: Available with integrated PCB or external antenna variants
- Compact Design: Suitable for embedding in a wide range of electronic systems
Specification
- Chipset: NRF24L01
- Operating Frequency: 2.4 GHz to 2.5 GHz (ISM band)
- Data Rate: 250 kbps / 1 Mbps / 2 Mbps
- Maximum Range: Up to 1.1 km (line-of-sight)
- Power Supply Voltage: 1.9V – 3.6V DC
- Current Consumption:
- Transmit: ~11–15 mA (depending on data rate)
- Receive: ~12 mA
- Standby: ~1 µA
- Interface: SPI (Serial Peripheral Interface)
- Antenna Type: PCB antenna or external antenna (varies by model)
- Operating Temperature: -40°C to +85°C
Application
- Wireless Communication Systems: Data transmission and control applications
- Home Automation: Smart home control and monitoring networks
- Robotics: Wireless communication between robotic modules or controllers
- IoT Projects: Long-range, low-power connectivity for IoT devices
- Prototyping & Development: Ideal for DIY and research-based wireless communication projects
Datasheet: For detailed technical information, refer to the datasheet of the NRF24L01 1.1km Wireless Module.
