Description

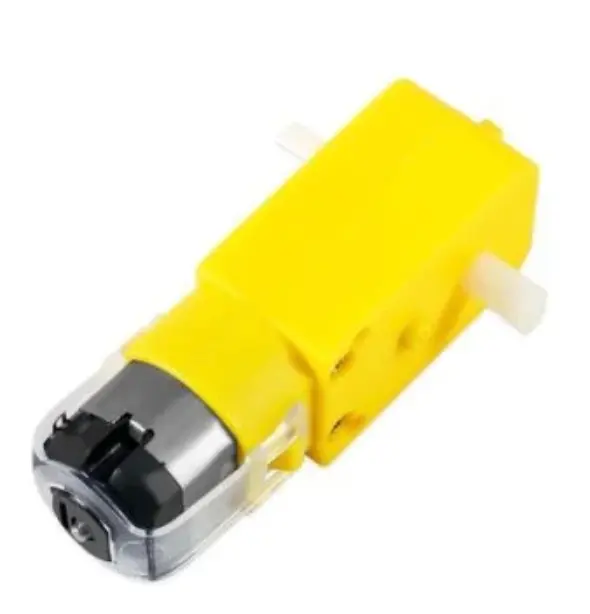

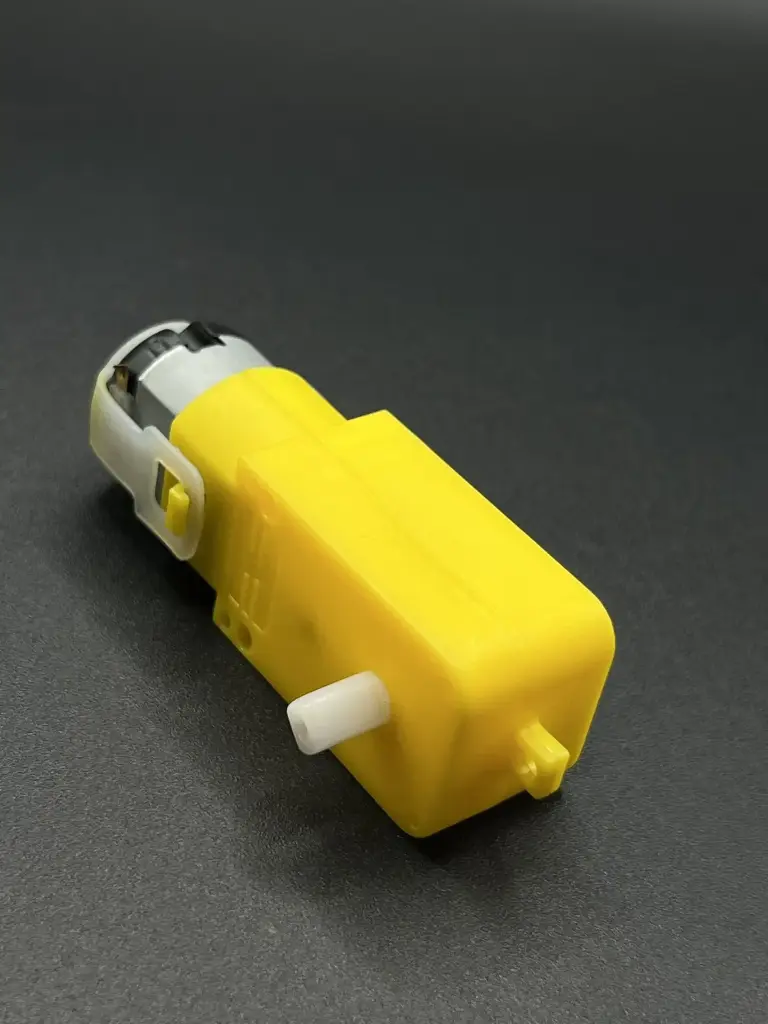

A Geared Motor combines an electric motor with an integrated gear mechanism to reduce speed while increasing torque. This design provides precise motion control, making it ideal for applications that require higher torque and lower speeds than standard motors can deliver. Geared motors are widely used across robotics, automation, industrial machinery, and hobby projects due to their efficiency, reliability, and adaptability.
Key Features
- Integrated Gear System: Combines a DC or stepper motor with precision gears for torque enhancement
- Variable Gear Mechanisms: Available with spur, planetary, or worm gears depending on application needs
- High Torque Output: Provides greater torque at reduced speeds for controlled, powerful motion
- Speed Reduction: Gear ratios adjust motor RPM to achieve precise output speeds
- Flexible Mounting Options: Available in multiple configurations for easy installation
- Durable Construction: Built from robust metal or high-grade plastic for long-term performance
Specification
- Motor Voltage: Commonly available in 6V, 12V, and 24V DC versions
- Gear Ratio: Typically ranges from 3:1 to 1000:1 (varies by model)
- Output Speed: Reduced proportionally to the gear ratio (e.g., 100:1 ratio → 1000 RPM input = 10 RPM output)
- Torque Output: Increases according to gear ratio; higher ratios deliver greater torque
- Current Consumption: 0.1A – 2A (depends on motor type and load)
- Material: Metal or reinforced plastic housing and gears
- Dimensions: Vary based on model and torque capacity
Application
- Robotics: Drives robotic arms, wheels, and motion systems requiring precise positioning
- Automation: Powers conveyor belts, linear actuators, and other automated equipment
- DIY & Hobby Projects: Suitable for makers and students working on motion control systems
- Automotive Systems: Used in power windows, seat adjusters, and door lock mechanisms
- Industrial Machinery: Provides reliable motion control in various mechanical systems
Datasheet: For detailed technical information, refer to the datasheet of the specific geared motor model.
