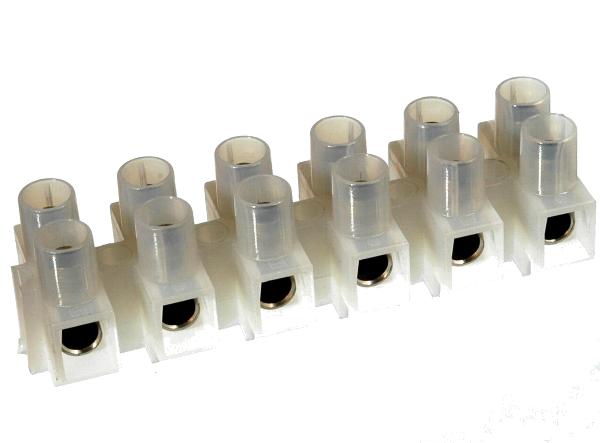

X3-60A 12bit 60A Terminal block
This content will be shared across all product pages.
The X3-60A 12bit Terminal Block is a high-current connector designed to facilitate the secure and reliable connection of multiple wires in electrical circuits. This terminal block supports up to 60A current and is suitable for various high-power applications, including industrial machinery, power distribution, and automotive systems.
Key Features:
- High current capacity: Supports up to 60A
- 12-bit terminal configuration
- Secure and reliable connections
- Easy wire insertion and release mechanism
- Durable construction for long-term use
- Suitable for high-power applications
- Current Rating: Up to 60A
- Voltage Rating: Typically up to 600V (check specific model datasheet)
- Number of Terminals: 12
- Wire Size: Accepts a range of wire gauges (commonly 10 AWG to 22 AWG)
- Terminal Type: Screw or spring clamp (varies by model)
- Material: High-quality insulating material (e.g., polyamide or similar)
- Mounting: DIN rail or panel mount
- Operating Temperature Range: -40°C to +105°C
- Industrial machinery
- Power distribution systems
- Automotive electrical systems
- Renewable energy systems (e.g., solar panels)
- Electrical control panels
- Heavy-duty appliances
- Mounting: Secure the terminal block to a DIN rail or panel, ensuring it is properly aligned and fixed.
- Wire Preparation: Strip the insulation from the wire ends to expose the conductive material (length as specified by the terminal block model).
- Wire Insertion: Insert the stripped wire ends into the terminal block openings.
- Secure Connection: Tighten the screws or engage the spring clamps to secure the wires in place.
- Verification: Ensure all connections are tight and secure to prevent loose wires and potential short circuits.
- Inspection: Regularly inspect connections for signs of wear or damage, and re-tighten if necessary.
- Ensure the terminal block is rated for the specific current and voltage of your application.
- Follow proper safety procedures when working with high-current electrical systems.
- Verify all connections are secure to prevent electrical faults.
- Regularly inspect the terminal block for any signs of wear or damage.
Technical Specifications:
- Logic Family: CMOS
- Number of Channels: 3
- Switch Configuration: Single-Pole Double-Throw (SPDT)
- Supply Voltage Range: 3V to 15V
- “ON” Resistance (R_ON): 125Ω typical at V_DD = 10V
- “OFF” Leakage Current (I_OFF): ±100pA typical at V_DD = 10V
- Control Input Voltage (V_IH): 0.7 V_DD min, 0.3 V_DD max
- Maximum Operating Frequency: 40 MHz at V_DD = 10V
Applications:
- Signal routing and switching
- Analog and digital multiplexing
- Audio and video signal processing
- Data acquisition systems
- Test equipment
