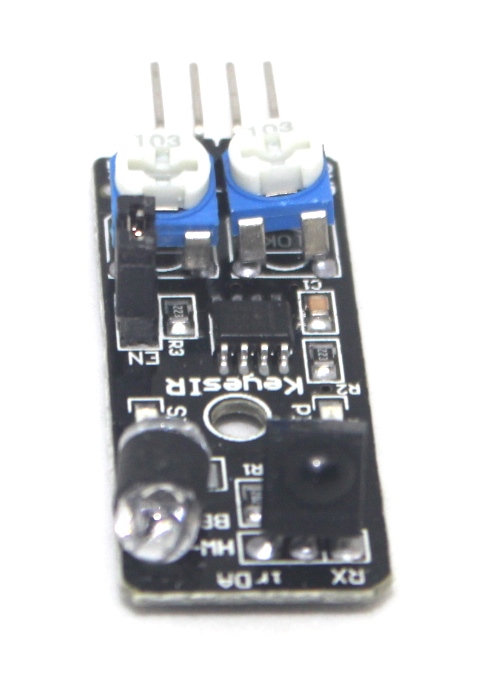

The Smart Car Obstacle Avoidance Sensor is an essential component for autonomous and robotic vehicles. This sensor detects obstacles in the path of a smart car or robot, enabling it to avoid collisions and navigate around obstacles. It uses various sensing technologies to provide real-time feedback and ensure safe operation.
Key Features:
- Obstacle Detection: Capable of detecting obstacles in the path of the vehicle.
- Real-Time Feedback: Provides immediate feedback to adjust the vehicle’s path.
- Compatibility: Designed to work with various smart car and robotic platforms.
- Adjustable Sensitivity: Allows for tuning of detection range and sensitivity.
- Durable Construction: Built to withstand environmental conditions and vibrations.
- Working voltage: DC 3.3V-5V
- Working current: ≥ 20mA
- Operating temperature: -10 ℃ - +50 ℃
- Detection distance: 2-40cm
- IO Interface: 4-wire interfaces (- / + / S / EN)
- Output signal: TTL level (low level there is an obstacle, no obstacle high)
- Adjustment: adjust multi-turn resistance
- Effective angle: 35 °
- Size: 28mm × 23mm
- Weight Size: 9g
- Autonomous Vehicles: Essential for self-driving cars and robots to navigate safely.
- Robotics: Used in robots for obstacle avoidance and navigation.
- DIY Projects: Ideal for hobbyists and makers working on smart car and robotic projects.
- Education: Useful in educational projects involving robotics and automation.
