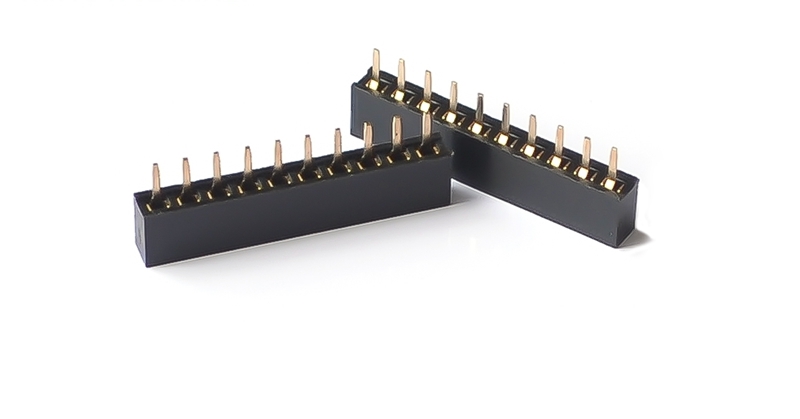

10pin 2mm female SIL header Pin
This content will be shared across all product pages.
The 10-Pin 2mm Female SIL (Single In-Line) Header Pin is a compact and versatile connector used in various electronic and electrical applications. It features a single row of 10 female pins, each with a 2mm pitch, designed to provide secure and reliable connections between PCBs (Printed Circuit Boards) or other electronic components.
Key Features:
- Compact Design: Single row of pins with a 2mm pitch for space-saving applications.
- 10-Pin Configuration: Provides 10 connection points for versatile use.
- Female Header: Designed to accept male pin headers or connectors.
- High Durability: Made from robust materials to ensure long-lasting performance.
- Easy to Solder: Suitable for through-hole mounting on PCBs.
- Number of Pins: 10
- Pin Pitch: 2mm
- Header Type: Female SIL
- Mounting Type: Through-hole
- Material: Typically plastic with metal contacts
- Contact Resistance: Low, to ensure reliable electrical connections
- Insulation Resistance: High, to prevent electrical leakage
- Dimensions: Varies by manufacturer; typically compact to fit standard PCB footprints
- PCB Connections: Used to connect various components or modules on a printed circuit board.
- Electronic Prototyping: Ideal for prototype development and testing.
- Modular Systems: Facilitates easy connection and disconnection of modules or components.
- Consumer Electronics: Commonly used in devices requiring precise and reliable connections.
- Industrial Applications: Suitable for various industrial electronics and control systems.
Technical Specifications:
- Logic Family: CMOS
- Number of Channels: 3
- Switch Configuration: Single-Pole Double-Throw (SPDT)
- Supply Voltage Range: 3V to 15V
- “ON” Resistance (R_ON): 125Ω typical at V_DD = 10V
- “OFF” Leakage Current (I_OFF): ±100pA typical at V_DD = 10V
- Control Input Voltage (V_IH): 0.7 V_DD min, 0.3 V_DD max
- Maximum Operating Frequency: 40 MHz at V_DD = 10V
Applications:
- Signal routing and switching
- Analog and digital multiplexing
- Audio and video signal processing
- Data acquisition systems
- Test equipment
