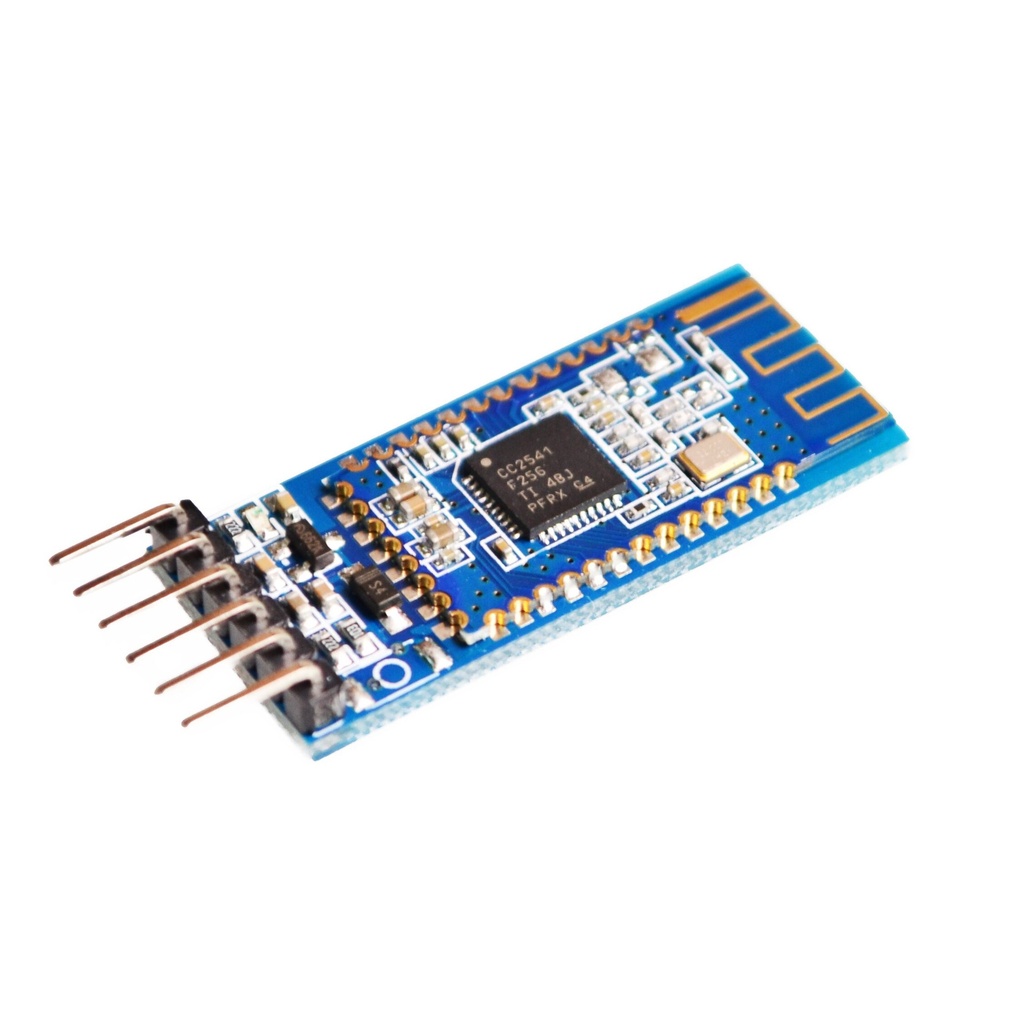

The AT-09 CC2541 Bluetooth 4.0 BLE Module is a low-power Bluetooth module based on the Texas Instruments CC2541 chipset. This module is designed for Bluetooth Low Energy (BLE) applications and offers a simple and efficient way to add wireless connectivity to your projects. It is suitable for various applications, including IoT devices, wearable technology, and wireless sensor networks.
Key Features:
- Low Power Consumption: Designed for energy-efficient operation, ideal for battery-powered applications.
- Bluetooth 4.0 BLE: Supports Bluetooth Low Energy for fast and reliable wireless communication.
- Integrated Antenna: Built-in PCB antenna for a compact design and easy integration.
- Easy to Use: Supports UART interface for easy communication with microcontrollers and other devices.
- Flexible: Configurable through AT commands for versatile usage in various applications.
- Chipset: TI CC2541
- Bluetooth Version: 4.0 BLE
- Frequency: 2.4GHz
- Transmission Distance: Up to 60 meters (line of sight)
- Operating Voltage: 2.0V to 3.6V
- Current Consumption: Standby: <1uA, Active: <8.5mA
- Interface: UART
- Antenna: Integrated PCB antenna
- Dimensions: 27mm x 13mm x 2mm
- Operating Temperature Range: -40°C to +85°C
- IoT Devices: Add Bluetooth connectivity to Internet of Things (IoT) projects.
- Wearable Technology: Integrate into wearable devices for wireless communication.
- Wireless Sensor Networks: Use in sensor networks for data collection and monitoring.
- Home Automation: Enable wireless control and monitoring in smart home applications.
- Health and Fitness: Incorporate into health monitoring and fitness devices.
