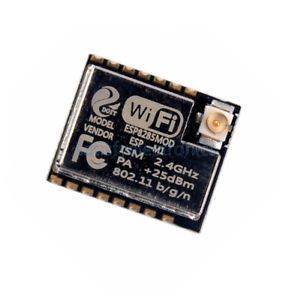

ESP-M1 Core module is The high performance esp8285 chip, which is equal to the esp8266 chip plus 1 m Flash. The esp825 chip is encapsulated in an advanced tensile processor, along with SRAM. Esp825 has the complete and complete WiFi connection, which can be used independently and alsosed as a slaver with other hoster MCUs, which can start directly from the construction flash. In addition, the built-in high-speed buffer benefits from system performance. Especially, esp8285 can be used as WiFi adapter by SPI / sdio and / or I2C / UART interface, when applied to the other MCU design.
Characteristics :
Ultra-small size
Series A WiFi support
Wireless transparent transmission
Long distance transmission with ultra low power
External antenna support
With high temperature at 125 ℃, compared to 85 ℃ for esp8266.
Technical Specification :
SOC features
Built-in tensile L106 Ultra-Low Power 32 bit CPU,
main frequency supports 80 MHz and160mhz, and rtos;
Built-in TCP / IP protocol;
High precision ADC of a 10-bit channel
External interface: hspi, UART, I2C, i2S, remote control go, PWM, gpio;
The deep sleep current is 10ua, the cutting current is smaller than 5ua;
Transmission and transmission data package within 2 ms;
The power consumption is less than 1.0 MW (dtim3) when it is in the Status position;
Built in 1 m byte for SPI flash.
Wi-fi features :
Support 802.11 b / g / n / e / I
Support station, smooth AP, soft AP mode + STA
Direct WiFi support (P2P)
Support CCMP (cbc-mac, Computation mode), TKIP (MIC, RC4), wapi (sms4), WEP (RC4), CRC etc., for hardware acceleration.
P2P find, P2P Mode mode / GC and P2P power manage WPA / pa2psk and WPS
802.11 security certification: pre-certification and TSN
Support 802.11n (2.4 GHz)
