Description

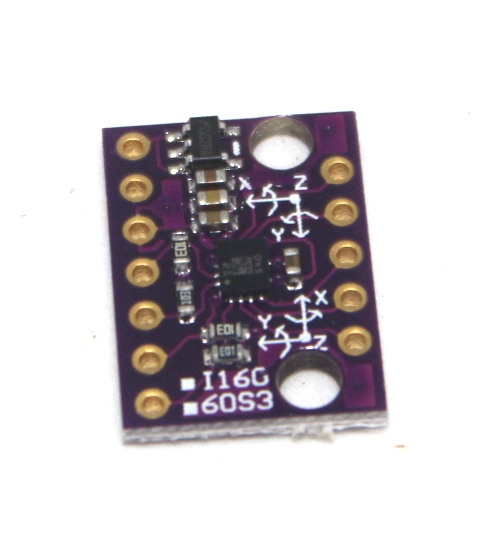

The GY-LSM6DS3 is a compact, high-performance 6-axis Inertial Measurement Unit (IMU) that integrates a 3-axis accelerometer and a 3-axis gyroscope into a single low-power sensor module. Designed for precise motion tracking and orientation detection, it is ideal for applications such as drones, robotics, wearables, and gaming systems. With support for both I2C and SPI interfaces, advanced embedded features, and ultra-low power operation, the GY-LSM6DS3 delivers reliable real-time motion data for both consumer and industrial applications.
Key Features
- 6-Axis Motion Sensing: Integrated 3-axis accelerometer and 3-axis gyroscope
- High Sensitivity & Accuracy: Configurable full-scale ranges for precise measurements
- Low Power Consumption: Optimized for battery-powered and portable devices
- Dual Communication Interfaces: Supports both I2C and SPI for flexible integration
- Embedded Functions: FIFO buffer, programmable interrupts, and pedometer support
- High Data Output Rates: Suitable for real-time motion tracking applications
- Ultra-Compact Design: Small footprint for space-constrained designs
Specification
- Sensor Type: LSM6DS3 IMU
- Accelerometer Full-Scale Ranges: ±2g, ±4g, ±8g, ±16g
- Gyroscope Full-Scale Ranges: ±125, ±250, ±500, ±1000, ±2000 dps
- Communication Interfaces:
- I2C: Up to 1 MHz
- SPI: Up to 10 MHz
- Supply Voltage: 1.71V – 3.6V
- Current Consumption:
- High-performance mode: ~0.9 mA
- Power-down mode: ~6.1 µA
- Operating Temperature Range: –40°C to +85°C
- Sensor Package Dimensions: 2.5 × 3.0 × 0.83 mm
Application
- Drones & UAVs: Flight stabilization and navigation
- Robotics: Motion sensing, balance, and orientation control
- Mobile Devices: Screen orientation and motion tracking
- Gaming Systems: Motion-controlled gaming and controllers
- Wearables: Activity tracking, fitness monitoring, and pedometer functions
- IoT & Embedded Systems: Motion-aware smart devices
Datasheet: For detailed technical specifications, refer to the GY-LSM6DS3 Datasheet.
