Description

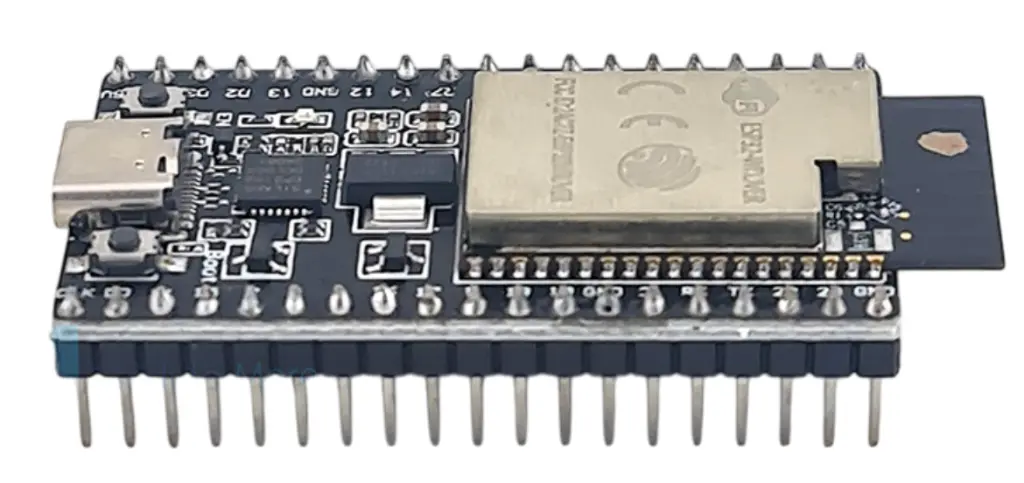

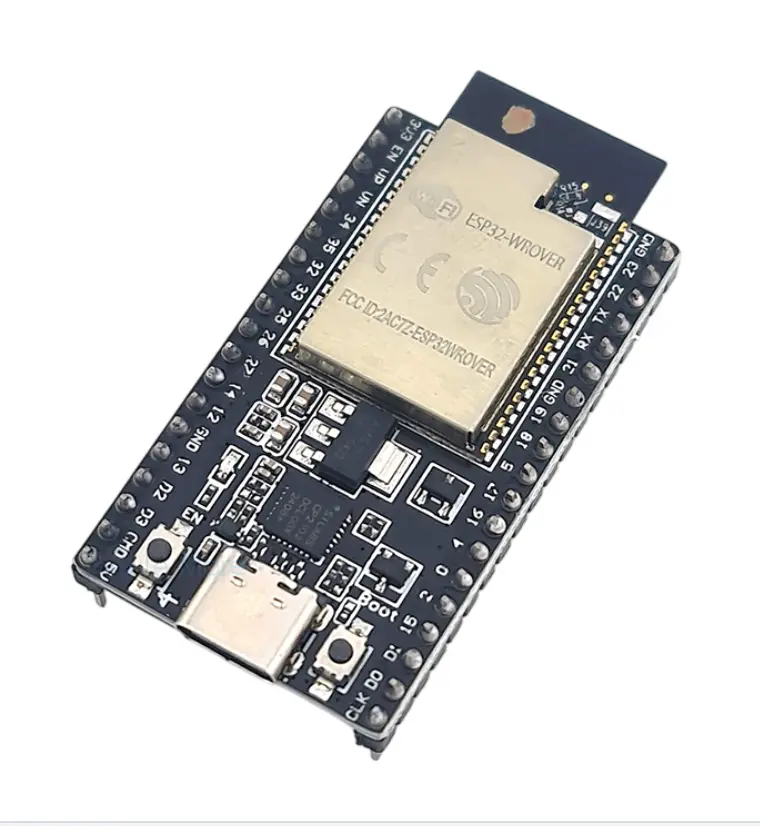

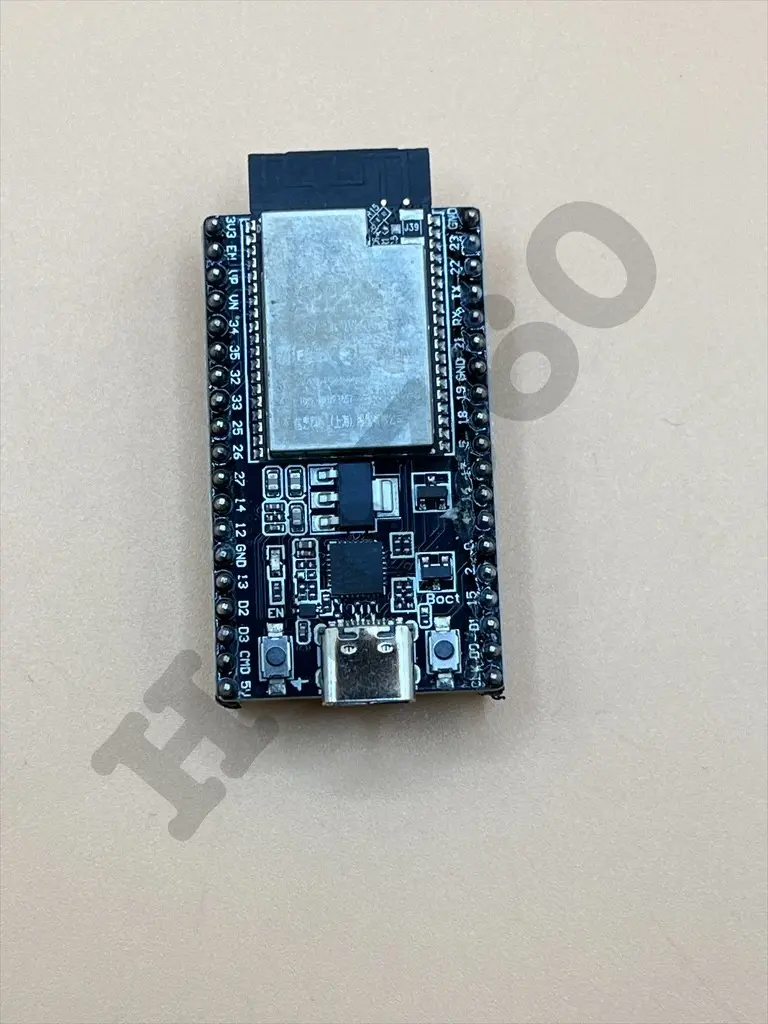

The ESP32-B Development Board with Type-C and 8MB PSRAM is a powerful and versatile platform for IoT, robotics, and embedded system projects. Powered by the ESP32-WROVER module, this board integrates a dual-core Xtensa® 32-bit LX6 processor, 4MB Flash, and 8MB PSRAM for memory-intensive applications such as audio processing, AI/ML, and multitasking. With Wi-Fi + Bluetooth v4.2 connectivity, a USB Type-C interface, and breadboard-friendly pin headers, this board is perfect for rapid prototyping and production-ready designs.
Key Features
- Based on ESP32-WROVER module with 8MB PSRAM
- USB Type-C connector for power and programming
- Integrated Wi-Fi (802.11 b/g/n) and Bluetooth v4.2 (BR/EDR + BLE)
- Dual-core Xtensa® 32-bit LX6 processor with ultra-low-power co-processor
- Breadboard-friendly design with all pins exposed
- On-board BOOT and EN (reset) buttons for easy firmware flashing
- Rich set of peripherals: UART, SPI, I2C, ADC, DAC, PWM, SD card, CAN bus (TWAI®), capacitive touch, and more
- Excellent RF performance and reliable power management
Specification
ESP32-WROVER Module
- Flash: 4MB
- PSRAM: 8MB
- Supply Voltage: 2.3V – 3.6V
- Operating Frequency: 2.4 – 2.5 GHz
- Wi-Fi Speed: Up to 150 Mbps
- Bluetooth: v4.2 BR/EDR + BLE
- Interfaces: UART, SPI, SDIO, I2C, I2S, PWM, IR, GPIO, CAN bus
- On-Chip Sensors: Hall sensor
- Average Current: ~80 mA
- Operating Temp: -40°C to +85°C
Application
- IoT product development and prototyping
- Robotics and motor control projects
- Smart home automation and wireless sensors
- Audio/DSP, camera, and AI/ML experiments
- Educational projects in embedded systems and communication engineering
