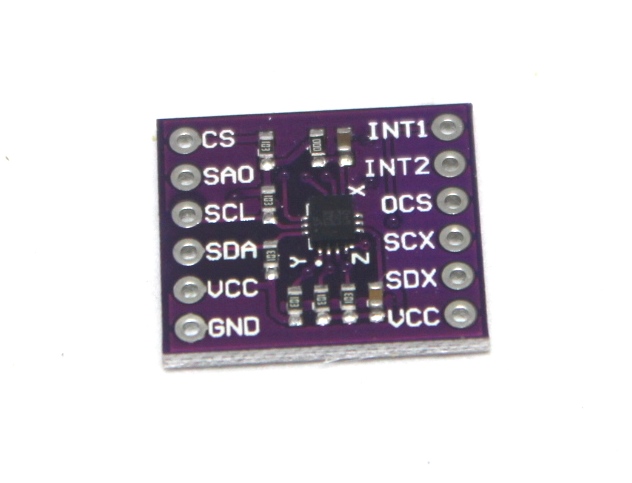

MCU-6D0F LSM6DLS 6 axis inertial acceleration and gyro sensor module
Description: The MCU-6D0F LSM6DLS is a 6-axis inertial sensor module combining both accelerometer and gyroscope functionalities. It provides precise measurements of acceleration and angular velocity, making it ideal for applications in motion tracking, navigation, and stabilization systems. This module features high accuracy, low power consumption, and easy integration with microcontrollers.
Key Features:
- 3-axis accelerometer and 3-axis gyroscope
- High accuracy and stability
- Low power consumption
- Wide measurement range
- Compact design for easy integration
- Accelerometer Range: ±2g, ±4g, ±8g, ±16g
- Gyroscope Range: ±125°/s, ±250°/s, ±500°/s, ±1000°/s, ±2000°/s
- Output Type: Digital (I2C/SPI interface)
- Operating Voltage: 1.71V to 3.6V
- Power Consumption: 0.8 µA in low-power mode
- Operating Temperature Range: -40°C to +85°C
- Dimensions: 16 x 16 x 2.5 mm
- Weight: 2 g
- Motion tracking
- Navigation systems
- Stabilization systems
- Robotics
- DIY electronics projects
